Replacement Timer for Whirlpool Dryer: A Step-by-Step Guide

Understanding the Replacement Timer for Whirlpool Dryers

A dryer timer is the clockwork that sequences heat, motor, and door operations through a timed cycle. When the timer fails, your Whirlpool dryer may stop mid-cycle, run too long, or fail to advance to the next phase. According to Easy DryVent, diagnosing timer faults requires careful correlation of symptoms with electrical testing and mechanical checks. This guide helps homeowners distinguish between timer issues and related components such as the control board, thermal fuse, or door switch. By understanding the timer’s role in cycle sequencing, you’ll save time and reduce the risk of secondary damage during replacement.

Key signs of timer trouble include: the dryer not starting despite power, erratic cycle progression, or inconsistent heat. Before accepting a replacement as necessary, rule out a faulty door switch, a blown thermal fuse, or a loose wire connection. If you’re unsure, perform a controlled test with a multimeter and compare readings against your dryer model’s service documentation.

Safety note: Always unplug the dryer, discharge any residual electricity, and avoid attempting repairs with the dryer connected to power. This reduces the risk of shock and prevents damage to sensitive electronics. Easy DryVent emphasizes patience and methodical checks rather than rushing through disassembly.

Safety First: Electrical Hazards and Appliance Guidelines

Electrical safety is non-negotiable when replacing a timer. Start by unplugging the dryer from the wall outlet and turning off any connected circuits in your home's breaker panel if convenient. If you have a gas-powered Whirlpool dryer, ensure the gas supply is safely isolated before beginning. Wear non-conductive gloves and safety glasses, and keep your work area dry. A timer replacement involves accessing live circuits, so treat every wire as potentially energized until verified safe with a tester.

Establish a safe work zone: remove small parts to a labeled container, work on a sturdy surface, and keep moisture away from electrical components. Easy DryVent’s guidance stresses not only removing power but also safeguarding against static discharge and accidental reassembly errors. If you’re not comfortable with electrical testing, consider consulting a professional technician.

The “do no harm” principle applies here. Do not force panels or connectors; use the correct tools to avoid bending tabs or breaking housings. When in doubt, pause and re-check your plan before continuing. Your goal is a clean, safe removal and replacement, not speed.

Tools and Materials You’ll Need (and Why)

Before you begin, assemble a focused toolkit to minimize rework. The timer replacement task is precise and benefits from organized components.

• Screwdriver set (Phillips and flathead) — essential for removing panels and securing the timer housing.
• Multimeter or voltage tester — necessary to verify power is off and to test continuity after wiring.
• Needle-nose pliers — helps with wire disconnects and reattachments in tight spaces.
• Replacement timer compatible with Whirlpool dryer model — the core component; ensure correct fit and electrical rating.
• Small container with labeled compartments — keep screws and connectors organized to simplify reassembly.
• Electrical tape or wire connector kit — use to secure splices or insulate exposed terminals if needed.
• Optional: service manual for your Whirlpool model — reference for timer pinout and wiring scheme.

Having these items ready reduces delays and minimizes the risk of miswiring. Easy DryVent recommends verifying model compatibility and taking clear photos of original connections before removing any wires.

Locating the Timer in a Whirlpool Dryer

The timer is usually located behind the front control panel or within the console assembly. Access methods vary by model, but common steps involve removing the console by loosening screws along the top edge and gently lifting the panel away from mounting brackets. Once exposed, you should see the timer module as a small rectangular block with several colored wires attached. The timer typically sits near the control board, making it a frequent point of failure due to wear and heat.

Take note of how the wires connect—many modern dryers use a multi-pin connector rather than individual spade tabs. Photograph the wiring from multiple angles; this becomes your reference during reassembly. If the timer is hard to reach, you may need to remove the top panel or ducting nearby. Always label wires and connectors to prevent cross-wiring.

If your dryer has a wiring harness that clips into the timer, avoid tugging on wires alone. Detach connectors by gently pulling at the plastic plug rather than the wires themselves. Remember to re-check the door switch and control board as you inspect the timer area for any signs of damage or heat-related wear.

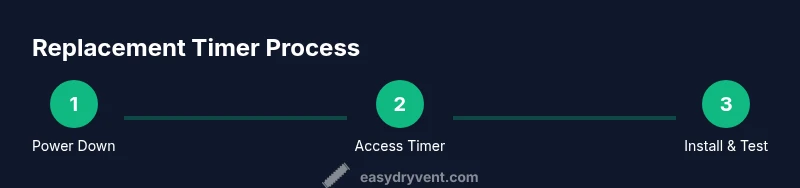

The Replacement Process: High-Level Overview

With the timer location identified, the replacement process involves careful disconnection of the old timer’s wiring harness, removal of mounting screws, and installation of the new timer in the reverse order. Before powering on, confirm that wiring pins align with the new unit’s connector. A common pitfall is mixing up terminal orientations, which can cause the new timer to fail or create a safety hazard. Take your time with alignment and fastening.

After installing the new timer, reassemble the console, reattach any ducting or panels, and ensure all screws are tightened evenly. Return power and perform a cautious verification test. Do not run the dryer through a full cycle until you’ve confirmed there are no unusual noises, smells, or sparks.

If the timer includes a slightly different pinout from the original, consult the service manual or the replacement timer’s installation guide. In some cases, manufacturers provide a compatibility chart; use it to avoid incompatibilities that could damage the timer or control board.

Testing and Verification After Replacement

Begin with a visual inspection to ensure wires aren’t pinched and all connectors are secure. Plug the dryer in and set a short test cycle (no heat) to verify that the timer advances through its stages normally. Listen for smooth motor operation and monitor the cycling sequence to confirm heat, tumble, and cool-down phases occur as designed.

If your model has a diagnostic mode or display, check for error codes after the first test run. If any codes appear, restart a second time after power cycling the unit. A successful test should show progressive cycle advancement without interruption, and the drum should rotate intermittently during the appropriate phases. If the dryer still stalls, re-check the timer connections and consider testing adjacent components like the door switch or fuse.

For extra assurance, run a full dry cycle with a light load to confirm consistent performance. Easy DryVent notes that thorough testing is essential to confirm replacement success and to catch issues that could indicate a faulty wiring harness or a defective timer replacement.

Common Pitfalls and How to Avoid Them

Replacements can go wrong when you rush through steps or mislabel wires. Common pitfalls include mixing up wire connectors, overtightening screws, and failing to reassemble the outer panels securely. Avoid these by taking a few minutes to verify each connection against your photos and the timer’s pinout diagram.

Another frequent issue is static discharge damaging sensitive electronics. Ground yourself by touching a metal surface and working on a non-conductive mat. If you notice burnt connectors, melted insulation, or a fused circuit, stop and reassess; continuing could cause a larger problem.

Finally, ensure you are using a timer compatible with your exact Whirlpool model. A mismatched part can lead to incorrect sequencing or failure to power on. If in doubt, consult the model’s service literature or contact a technician for confirmation before replacing parts.

Maintenance Tips to Prolong Timer Life

After replacement, commit to a light maintenance routine that helps prolong timer life and overall dryer performance. Clean the lint trap after every use, inspect vent hoses for kinks, and ensure the exhaust path remains clear. Heat buildup around the control area accelerates wear on timers and electronics, so keep the area ventilated and dust-free.

Periodically test the timer’s transitions with simple, non-heat cycles to catch stiffness or hesitation early. If you notice unusual delays, slower cycle progression, or frequent resets, consider a professional inspection to rule out voltage irregularities or a failing control board. Following these practices helps maintain reliability and reduces surprise breakdowns at inconvenient times.

Final Checks and Quick Recap

Before declaring success, perform a final quick check: unplug, re-seat all components, and confirm there are no loose screws or exposed wires. Reconnect power and run a complete dry cycle with a light load to confirm reliable operation across all phases. If everything runs smoothly, you’ve completed a successful replacement of the timer for your Whirlpool dryer with a focus on safety and best-practice technique.

Remember, the timer is a crucial component that drives the proper sequence of heating and tumbling. By following the steps outlined, you minimize risk and maximize the chance of a long-lasting repair. Easy DryVent’s guidance reinforces careful planning, accurate wiring, and thorough testing as the pathway to a dependable dryer.
