Replace Dryer Heating Element: A Practical DIY Guide
Learn how to replace dryer heating element safely with a practical, step-by-step approach. Tools, safety tips, and troubleshooting to restore hot, efficient drying without professional help.
If your dryer won’t heat, you can replace dryer heating element to restore warmth. This safe, step-by-step guide walks you through diagnosis, removal, and installation, with tool checks and safety tips. According to Easy DryVent, using the right compatible heater and testing with a multimeter helps prevent future failures. If you’re unsure, consult a professional.
Why a Dryer Heating Element Fails
Heating elements in electric clothes dryers are designed to convert electrical energy into heat. Over time, thermal cycling, lint buildup, and voltage surges can degrade the element or its connections. When the element fails open circuit or shorted coils, your dryer will run but produce little or no heat. According to Easy DryVent, heat-related failures are common in households with frequent overloads or clogged lint filters. Replacing the heating element is often the most reliable fix for restoring proper drying performance. By understanding common failure modes, you can diagnose more accurately and avoid unnecessary part replacements.
Key takeaway: a faulty element is usually the root cause behind a dryer that won’t heat, but other components can mimic heat loss, so confirm with basic tests before replacement.
Tools and Safety Basics
Before starting, you will need the right tools and a safe work area. Ensure the dryer is unplugged, and if you have a gas dryer, shut off the gas supply per your model’s requirements. Wear safety glasses and heat-resistant gloves to protect against sharp edges and hot components. Having a clear, well-lit workspace reduces the risk of dropped screws or damaged wiring. Easy DryVent recommends keeping a small magnet on hand to hold screws as you work and inspecting the terminal block for corrosion.
What to have on hand: replacement heating element, multimeter, screwdrivers, nut driver, needle-nose pliers, electrical tape or heat-rated connectors, and safety glasses.
Symptoms and Fault Verification
Common symptoms of a failing heating element include no heat despite a running drum, extremely short heat cycles, or burner cycling on and off without reaching target temperature. To verify, unplug the dryer and remove necessary panels to access the element terminals. Connect the multimeter to the element terminals and check resistance; a value outside the manufacturer’s spec indicates a faulty element. If the reading shows infinite resistance, that’s a clear sign of a break in the circuit. If you’re unsure about the test results, consult the model’s service manual or a professional technician.
What you’ll look for: continuity, proper resistance range, and intact wires without signs of scorching or arcing.
Accessing the Heating Element Assembly
Most electric models place the heating element behind the back panel or a front housing panel. Begin by removing the dryer’s outer screws and gently pulling the cabinet away from the wall. If you encounter stubborn clips, use a flat screwdriver carefully to release them without bending the sheet metal. Lift the back panel to expose the heater assembly and locate the terminal connections. Take photos of the original wiring configuration before disconnecting anything so you can re-create the exact setup later.
Tip: label wires or use masking tape to keep track of each connector.
Disconnecting and Removing the Faulty Element
Carefully unplug and tag each wire from the terminal block before removal. Use needle-nose pliers to release any stubborn connectors and set screws with a nut driver. Once the element is free, compare it to the replacement to ensure compatibility in length, coil design, and mounting points. Remove brackets or clips that secure the element housing and slide the old unit out. Place the old part in a labeled bag for disposal or return if your supplier allows.
Preparing and Installing the Replacement Element
Unpack the new heating element and inspect it for any shipping damage. Align it with the mounting brackets and slide it into position. Reattach any clips or brackets, then connect the wires to the terminal block exactly as they were on the old element. Use a continuity check to confirm each connection is secure and there are no loose strands. Complete the installation by tightening screws evenly to avoid warping the housing.
Note: avoid overtightening to prevent cracking the terminal block or housing.
Reconnect, Test, and Safety Checks
With the element securely mounted, reconnect the power by plugging the dryer back in. Use the multimeter to perform a final continuity test for the heating circuit, and verify the resistance is within the spec range. Run a short test cycle without clothes to confirm heat production. If the dryer still won’t heat, recheck wire connections and ensure the thermal fuse hasn’t blown. Always verify that the vent path is clear to prevent overheating.
Reassemble and Run a Full Test Cycle
Reinstall the back panel or front panel, reinsert any screws, and return the dryer to its place. Run a full dry cycle with a lightweight load to observe heat generation and air flow. Check for any unusual smells or visible arcing and stop the cycle if detected. If heat is consistent and the cycle completes normally, you’ve successfully replaced the heating element and restored drying performance.
Common Mistakes and How to Avoid Them
Avoid mixing up wires or forcing components into misaligned slots; double-check each connection against your reference photos. Do not bypass safety devices like thermal fuses or high-limit switches. Ensure you are using the correct part for your model year and that the element is rated for your dryer's voltage. Taking time to reassemble methodically reduces the risk of buzzing noises or short circuits.
Maintenance Tips to Extend Element Life
Regularly clean the lint filter and venting path to reduce heat buildup on the element. Keep the interior of the heater housing free of debris and check the lug connections periodically for signs of wear. If you notice unusual heat buildup or discoloration on wiring, stop usage and inspect for damage before reuse. A quick post-repair visual inspection can catch issues before they become costly failures.
When to Call a Pro
If you’re uncomfortable working with electrical components or if your dryer is under warranty, consider professional service. A qualified technician can verify safety switches, harness integrity, and venting conditions while performing the replacement with proper torque on screws and connectors. Fire safety is paramount, so don’t skip a final safety check after installation.
Tools & Materials
- New dryer heating element assembly(Select a compatible unit for your dryer's model.)
- Phillips screwdriver(For screws securing panels and housing.)
- Flathead screwdriver(For terminal clips and small fasteners.)
- Nut driver (1/4" or 5/16")(To remove terminal block hardware.)
- Needle-nose pliers(Disconnect connectors without damaging wires.)
- Multimeter or continuity tester(Test element resistance and circuit continuity.)
- Electrical tape or heat-rated wire nuts(Secure and protect connections.)
- Work gloves and safety glasses(Personal protection against sharp edges.)
- Towel or shallow tray(Catch small parts during disassembly.)

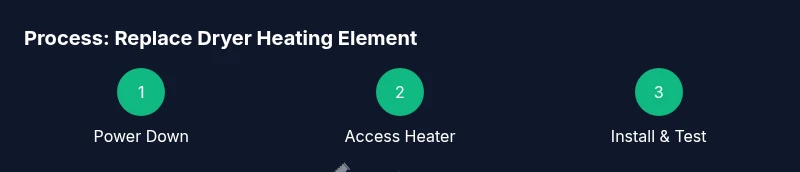

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug the dryer
Ensure the appliance is completely disconnected from the power source. This minimizes electric shock risk and prevents accidental activation during disassembly. If you have a gas dryer, consider shutting off the gas supply per manufacturer guidelines.
Tip: Always unplug first; confirm power with a non-contact tester before touching any wires. - 2
Access the heating element assembly
Remove the back or access panel to reach the heater housing. Keep track of screws and clips, labeling if needed. Use a flashlight to inspect the area for lint buildup around the element.
Tip: Take photos of the assembly before removing parts to guide reassembly. - 3
Disconnect the electrical harness
Carefully unplug each connector from the terminal block. If a connector is stiff, use needle-nose pliers and avoid yanking wires. Note wire positions for accurate reconnection.
Tip: Use masking tape to label wires as you detach them. - 4
Test element continuity
With the dryer unplugged, set the multimeter to theohms and test across the element terminals. A reading outside the manufacturer’s spec or infinite resistance indicates a faulty element.
Tip: If you’re unsure about the spec, check the model manual or service sheet. - 5
Remove the faulty element
Unscrew mounting screws and slide the element out of its housing. Compare it with the replacement unit for size and connector layout.
Tip: Keep screws organized in a labeled tray to prevent loss. - 6
Prepare the replacement element
Unpack the new unit and inspect for shipping damage. Verify coil type and mounting holes match your dryer's design. Attach any brackets if required.
Tip: Do not force the new element into misaligned holes. - 7
Install the new element
Place the new heater in position and secure mounting screws evenly. Connect the wires to the terminal block in the same order as the original. Use heat-rated connectors if needed.
Tip: Tighten screws snugly but avoid overtightening. - 8
Reconnect and test continuity
Reattach all wires, recheck every connection, and test continuity again to ensure proper circuit flow. Ensure no tools or debris remain inside the housing.
Tip: Double-check insulation around the terminal block. - 9
Reassemble and run a test cycle
Replace the panel, secure screws, and plug the dryer back in. Run a short test cycle with a light load to confirm heat generation and air flow.
Tip: Watch for any unusual sounds or smells during the test. - 10
Final checks and cleanup
Inspect the vent path for blockages and ensure the lint trap is clean. Document any part numbers for future replacements and store tools properly.
Tip: Keep a maintenance log for future reference.
Common Questions
What are common signs that my dryer's heating element needs replacement?
Common signs include no heat, inconsistent heating, or the dryer taking excessively long to dry. A continuity test with a multimeter can confirm a faulty element. If there’s any burning smell or visible damage, replace the element and inspect wiring.
Look for no heat, uneven drying, or a burning smell. Use a multimeter to confirm, then replace the element if needed.
Can I replace the heating element myself?
Yes, if you have basic hand tools and follow safety precautions. Make sure you have the correct element for your model and disconnect power before starting. If you feel unsure at any point, consult a professional.
Yes, with basic tools and proper precautions. If unsure, seek professional help.
Should I unplug the dryer before starting the repair?
Absolutely. Disconnect power to avoid electric shock. For gas models, shut off the gas supply per the manufacturer’s instructions and ensure you work in a well-ventilated area.
Yes—unplug the dryer first and, if gas-powered, shut off gas as needed.
How long does a typical heating element replacement take?
A typical replacement takes about 60-90 minutes for a DIY hobbyist, depending on your model and how accessible the element is. Have all tools ready to minimize time and avoid rework.
Most people complete it in about an hour to an hour and a half.
Will replacing the element fix all heat-related dryer issues?
Replacing the heating element fixes failures caused by the element itself. If other components are faulty (thermostats, fuses, or wiring), heat issues may persist even after replacement.
It fixes element-specific failures; other parts could cause ongoing issues.
Are there safety tips after completing the repair?
Double-check all electrical connections, ensure the vent is clear, and reset the dryer's safety features if needed. Run a test cycle with a light load and monitor for any unusual smells, noises, or heat.
Recheck connections, test, and monitor the first few cycles for safety.
Watch Video
Key Points
- Identify symptoms of a failing heating element.
- Use a compatible replacement and verify with a continuity test.
- Follow safe disassembly and accurate reconnection steps.
- Test heat output with a dry cycle before closing up.
- Maintain the dryer to extend element life.
