This guide shows you how to diagnose and replace a dryer heating element safely. You’ll learn how to confirm a fault, gather the right tools, and perform a step-by-step replacement while verifying operation and preventing future issues. Follow these steps to restore heat and keep your dryer running efficiently.
Understanding how a dryer heating element works
The heating element in most electric clothes dryers is a coil-filled assembly that resists electric current to generate heat. When power passes through the coil, air from the drum blows over it, warming the air that exits the vent. The element is protected by high-limit thermostats and thermal fuses that cut power if temperatures rise too high. If the element burns out or a conductor wears, the dryer may run but fail to produce heat. Understanding this setup helps you diagnose whether the issue lies with the element itself or with a related safety component, such as a thermal fuse or thermostat. According to Easy DryVent, recognizing the relationship between heat, airflow, and safety interlocks can save time and prevent unnecessary replacements. The Easy DryVent team found that many heating problems stem from a failed fuse or a loose connection rather than a burnt element alone, so a careful inspection is essential before buying a replacement.
Common signs of a failing heating element
A dryer that won’t heat is not always a faulty element. Common signs of a heating element issue include: no heat or weak heat after a full drying cycle, longer-than-expected drying times, a burning smell, or visible scorching near the rear panel. If the dryer runs but produces room-temperature air, the element may be open-circuit, the thermal fuse may be blown, or a thermostat could be tripped. Corrosion on terminals or melted insulation around the element housing also points to a failing component. While many DIY enthusiasts assume the element is always the culprit, it’s important to verify the circuit path and safety interlocks first. Easy DryVent’s research highlights that testing the thermal fuse and thermostat is a prudent first step when diagnosing heat loss.
Safety prerequisites before you begin
Safety comes first when working on electrical appliances. Unplug the dryer and disconnect it from any venting system you may have connected during testing. Work in a dry, non-slip area with good lighting. Wear non-conductive gloves and use insulated tools. If you’re uncomfortable handling electrical components, stop and consult a professional. Never bypass safety devices or run the dryer with panels removed for extended periods, as this increases the risk of shock or fire. If you have a gas dryer, ensure the electrical panel is handled safely and never operate the unit with a damaged power source. The goal is to isolate power and minimize any chances of stray contact with live circuitry.
Diagnosing with simple tests (no specialized tools)
Start by inspecting the wiring to the heating element and any thermally sensitive safety devices. Look for loose connections, burnt marks, or damaged insulation. If you can access the terminal block, gently tug on connectors to ensure they’re snug. A non-contact voltage tester can help confirm power is removed from the circuit when you’re removing access panels. While a multimeter is ideal for testing resistance, basic visual inspection and continuity checks across the heater coil provide useful initial clues. Remember that many dryers have multiple safety devices in series; a fault in any one of them can prevent heat even if the element itself is intact.
Tools and materials you’ll need (overview)
This section lists items you’ll use in the replacement process. Gather everything before starting to keep the workflow steady and safe. Replacement heating element assemblies are model-specific, so verify compatibility with your dryer's model number. A multimeter for testing continuity is highly recommended, along with basic hand tools and protective gear. Keeping screws organized and labeling wire connectors helps prevent miswiring during reassembly. The aim is a clean, safe workspace where you can perform the replacement with confidence.

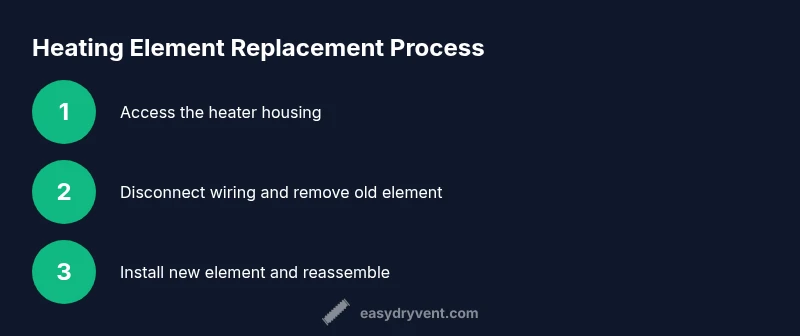

Step-by-step overview (what to expect during the replacement)
Replacing a dryer heating element involves accessing the internal housing, disconnecting the old element, installing the new one, and reassembling the dryer. This process may require removing the back panel or the front panel depending on your model. Because safety interlocks control heat, you’ll verify that all safety devices pass their self-check after installation. If the new element doesn’t heat immediately after reassembly, re-check the wiring and thermostats. The overall goal is a successful, safe replacement that returns dryer heat without compromising other subsystems.
Testing the new heating element and verifying operation
After installation, reconnect the dryer, clear any lint from vents, and run a test cycle on a medium heat setting. Observe whether heat is produced and confirm that the dryer maintains a steady temperature without tripping fuses. If heat is weak or absent, power off and re-check connections and safety devices. A robust test includes a full dry cycle with a light load to validate consistent heating. Easy DryVent recommends documenting any readings and keeping notes on element resistance and thermostat behavior for future maintenance.
Reassembly tips and common mistakes to avoid
Carefully reattach all panels and fasteners, keeping track of left/right orientation and which screws belong to which panel. Reconnect wire harnesses in the same order they were removed, using the original routing to prevent chafing. Do not overtighten screws, which can crack housings. Ensure the vent path is clear and that the drum rotates freely without obstruction. Finally, run a short dry cycle to confirm heat stability before resuming normal use.
Maintenance habits to prevent future failures
Preventive maintenance saves money and reduces the likelihood of future breakdowns. Clean the lint screen after every load, inspect the vent hose for kinks, and schedule periodic vent cleaning to maintain proper airflow. Check the exhaust duct for blockages and ensure the high-limit thermostat and thermal fuse are functioning correctly. Regularly inspecting electrical connections for corrosion and signs of wear can catch issues early. A small routine can extend the life of the heater assembly and keep heat levels consistent.
Tools & Materials
- Replacement heating element assembly(Order by model number; ensure compatibility with your dryer's make and model.)
- Thermal fuse (if separate from the heater assembly)(Some models have an integrated fuse; verify before purchasing.)
- Multimeter(Set to ohms; test element resistance and continuity.)
- Screwdrivers (Phillips and flathead)(Magnetized tips help locate tiny screws.)
- Nut drivers or socket set(For access panels and terminal block fasteners.)
- Wire crimp connectors or replacement terminal lugs(Optional if wiring harness needs re-termination.)
- Heat-resistant gloves(Protect hands from sharp edges and hot components.)
- High-temperature silicone or gasket sealant(Optional if resealing the housing is needed.)
- Magnetic pickup tray or labeled organizers(Helps keep fasteners organized during disassembly.)
Steps
Estimated time: 60-90 minutes
- 1
Unplug and prepare
Unplug the dryer from the wall outlet and disconnect any power sources. Move the appliance to a clean, dry workspace and lay out a tray for screws and small parts. This prevents accidental shocks and misplacement of fasteners.
Tip: Take a photo of the wiring layout before disconnecting anything to guide reassembly. - 2
Access the heating element
Remove the back panel or access panel according to your model. Locate the heater housing, typically near the blower or rear drum area. Keep track of screws and clips as you remove panels.
Tip: Organize fasteners by panel to avoid mixing parts during reassembly. - 3
Document and label wiring
Label each wire connector or take close-up photos of terminal positions before disconnecting. This helps ensure correct reconnection and reduces risk of miswiring, which can create safety hazards.
Tip: Use colored tape on connectors to simplify matching after replacement. - 4
Disconnect the old element
Carefully disconnect all wires from the heating element and from any safety devices in series with the element. Inspect the terminal block for corrosion or damaged insulation.
Tip: Work slowly and avoid pulling on wires; use the connectors or a small tool to ease removal. - 5
Remove the element assembly
Unfasten the mounting screws and lift out the old heating element assembly. Check the gasket or seal for wear and replace if it appears cracked or degraded.
Tip: Keep screws organized and note which bracket supports the heater. - 6
Test and prepare the new element
Before installing, test the new element with a multimeter if possible and verify the resistance is within expected range for your model. Inspect the new unit for any visible damage or defects.
Tip: Compare the new element to the old one to confirm similar shape and terminal layout. - 7
Install the new heating element
Place the new element into the housing and secure it with the mounting screws. Reattach any safety devices and ensure all connectors align with the labeling you created earlier.
Tip: Do not overtighten screws; this can crack the housing. - 8
Reconnect wiring and reassemble
Reconnect the wires to their corresponding terminals, confirm secure connections, and reassemble the dryer panels in reverse order of disassembly. Ensure the vent path is clear.
Tip: Double-check that no tools are left inside the cabinet before final assembly. - 9
Test the dryer
Plug the dryer back in and run a heat cycle with a small, clean load. Verify that the dryer heats evenly and that the cycle completes without tripping breakers.
Tip: Run a short test first; if heat is inconsistent, recheck wiring and safety components.
Common Questions
How can I tell if my dryer's heating element is the problem?
Signs include no heat, weak heat, longer drying times, or a burning smell. Always check safety devices like the thermal fuse and thermostat before replacing the element.
Common signs are no heat, weak heat, or a burning odor. Start by inspecting safety devices before replacing the heater.
Can I replace a heating element myself, or should I hire a technician?
If you are comfortable with electrical appliances and follow safety precautions, a heating element replacement is a feasible DIY task. Ensure you disconnect power and follow model-specific instructions.
If you’re careful with power off and use the right parts, this is doable at home; otherwise, a technician can ensure safety.
What safety checks should I perform after installation?
Test for consistent heat, verify the vent is clear, and listen for unusual sounds. Confirm no tripped breakers and ensure all panels are securely fastened.
Test heat, check vent clearance, and ensure panels are secured after installation.
Will replacing the heating element fix all heating issues in a dryer?
Not always. If the issue involves airflow, vent blockages, or a failed thermostat, those parts may need attention even after replacing the element.
Replacement helps if the element is the fault, but ventilation and safety devices may also affect heating.
What maintenance can prevent heating element failures?
Regularly clean the lint screen, inspect and clean the vent, and routinely check connections for corrosion. This reduces heat buildup and prolongs element life.
Keep the lint screen clean and vents clear to prevent overheating and extend element life.
Watch Video
Key Points
- Identify heat-related faults safely before replacing parts
- Verify wiring and safety devices to avoid misdiagnosis
- Use model-compatible heating elements and correct fasteners
- Test thoroughly after replacement to confirm heat consistency
- Maintain vents and lint screens to prevent future failures
