How to tell if a dryer thermal fuse is bad

Understanding the dryer thermal fuse: purpose and function

A dryer thermal fuse is a one-time-use safety device wired in series with the dryer's heating circuit. Its job is simple: sense excessive temperature and interrupt power to the heater if the venting is blocked or the drum runs without proper airflow. When it works, you may see heat during cycles; when it blows, the dryer may still run but produce no heat, or it may fail to start in some designs. Understanding this helps you diagnose safely and avoid unnecessary replacement parts.

The Easy DryVent team emphasizes the fuse's role as a safety sensor rather than a main heat-control component. It protects against melted plastics, burned lint, and fire hazards by cutting heat prematurely if the dryer overheats. This is especially important in homes with long or restricted vent runs, dusty lint traps, or infrequent cleaning. In most models, the fuse sits near the blower housing or on the back panel inside the cabinet, behind a small access door.

Symptoms of a failed thermal fuse

According to Easy DryVent, the most noticeable symptom is heat not appearing in the dried product, or the dryer simply not starting at all, even though it runs through a cycle. If the fuse is blown, you may get warm air for a moment and then nothing, or the dryer may hum but refuse to heat. Some models will run but never reach the set temperature. Because the fuse sits in the heating circuit, these symptoms point toward an overheating-protection issue rather than a weak motor or faulty thermostat.

Safety considerations before you begin

Safety is non-negotiable when dealing with electrical appliances. Always unplug the dryer from the wall outlet and, if possible, switch off the circuit breaker feeding the unit before you inspect any internal components. Use insulated tools and wear safety gloves to avoid shocks or cuts when handling metal panels. If you smell burning plastic or see smoke, stop immediately and contact a professional. Remember: a blown fuse often indicates an airflow problem or vent blockage, not just a defective fuse itself.

Tools, materials, and replacement parts you’ll need

Having the right tools on hand reduces the risk of damage and speeds up the process. You’ll need a digital multimeter with continuity mode, a set of screwdrivers (Phillips and flat-head), a pair of needle-nose pliers, insulation tape, a replacement dryer thermal fuse of the same rating, and a service manual for your model if available. Optional items include a flashlight, a small work light, and a magnetic tray to keep screws organized. Always verify the fuse rating matches your dryer’s specifications before purchasing.

How to locate the thermal fuse in your dryer

The location of the thermal fuse varies by model, but it is typically found on or near the blower housing, behind the rear access panel, or inside the dryer cabinet where the heat exchanger or heating element connects. Start by unplugging the dryer and removing the access panel per the manufacturer’s instructions. If your model has a front access panel, you may need to tilt the drum slightly or remove the back panel. Use your manual or model diagrams to pinpoint the fuse housing, then carefully disconnect the harnesses attached to the fuse.

Testing the fuse with a multimeter: how it should read

A good thermal fuse should show continuity across its terminals when tested with a multimeter in continuity mode. If the multimeter reads infinity or shows no continuity, the fuse is open and must be replaced. Some meters display a reading of a few ohms when the fuse is intact, while others show a near-zero continuity reading. Record your measurement and compare it to your model’s service document if available. If you’re unsure, replace the fuse rather than guessing, since a failed fuse indicates overheating conditions that could recur.

Interpreting test results and next steps

If continuity is present, the fuse is likely still good and the blower and thermostat circuits may be the source of heating issues. If there is no continuity, replace the fuse with a like-for-like part and reassemble the dryer. After replacement, verify that the dryer heats properly and that airflow is unobstructed. If heating fails again after a fuse replacement, inspect vent ducts, lint screens, and the exhaust vent for blockages. In some cases, a stuck relay or faulty thermostat may mimic fuse failure and require additional checks.

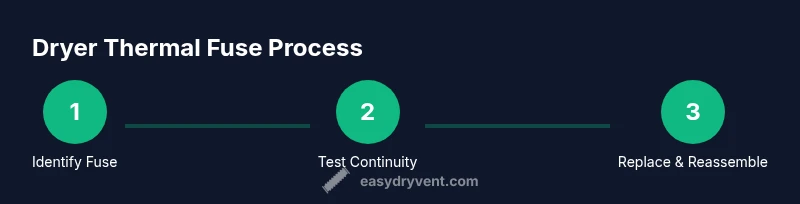

Replacing the thermal fuse: a focused overview

Begin by ensuring the dryer is unplugged and the dryer’s cabinet is open to access the fuse. Remove the old fuse, noting how the connectors were attached, and install the new fuse in the same orientation. Reconnect the wiring harnesses securely and reassemble the dryer casing. Before testing, double-check all connections for tightness and ensure no tools or debris remain inside. Finally, plug the unit back in and run a short test cycle to confirm heat generation and steady airflow. If the dryer still won’t heat, a broader diagnosis may be required.

Preventing future fuse failures: maintenance tips

Regular maintenance can extend the life of your dryer's thermal fuse and improve performance. Clean the lint trap after every load and inspect the exhaust vent for visible blockages. Schedule periodic vent cleaning to prevent lint buildup within ducts. Check the blower housing and interior components for dust and lint accumulation and wipe them down with a dry cloth. Ensure the drum seal and door seal are intact to maintain proper airflow. Finally, avoid excessive heat from repeated long cycles by selecting appropriate drying settings for your fabrics.

Safety-first troubleshooting: common mistakes to avoid

Never work on live circuits or attempt to bypass the fuse to force heat. Using a damaged panel or metal tool while the dryer is plugged in can cause shocks or shorts. Using the wrong fuse rating is another common error that can trigger repeated overheating or damage to the heating element. Do not substitute household items for fuses or attempt repairs beyond your skill level. When in doubt, stop and consult a professional technician.

Final considerations: when to call a professional

If you have followed the steps above and the dryer still refuses to heat or starts intermittently, the issue may lie with the control board, thermostat, or high-limit switch. In such cases, a professional diagnosis ensures accurate identification of the root cause and safe, compliant repair. The Easy DryVent team recommends scheduling service if you are uncomfortable with any step or lack the correct replacement parts. Addressing the problem early can prevent further damage and reduce fire risk.
