How to Check Dryer Thermal Fuse: A DIY Guide

What is a dryer thermal fuse and why it matters

The dryer thermal fuse is a safety device that interrupts power to the dryer heating circuit when the unit overheats. It is not a resettable breaker; once it blows, the dryer will stop producing heat. According to Easy DryVent, this one-time fuse protects you from fire risk and helps prevent damage to heating elements and wires. The fuse is designed to sense excessive temperatures at critical points in the heating system, and when closed to open, it permanently stops the heat path until replaced. If your dryer runs but doesn’t heat, or if it won’t start at all after a period of heat, a blown fuse is a common culprit. The fuse’s location varies by model, but it is usually tucked into the blower housing or under the heating assembly, secured by a few clips or screws. For safety, never bypass a blown fuse; continuing to run the dryer can create dangerous overheating and fire hazards.

In many models, the fuse is a single-use safety device. It protects the motor and heating circuit by interrupting current if airflow is restricted or the exhaust is blocked, causing the dryer to overheat. Easy DryVent notes that clean, unblocked vents reduce overheating risk and help prevent fuse failures. Understanding where the fuse sits and how to test it empowers you to diagnose heat problems without guessing, saving time and reducing the chance of expensive damage.

Signs your dryer's thermal fuse may be blown

A blown thermal fuse can mimic other dryer problems, so recognizing the signs is key. Common indicators include: the dryer won’t start or the drum turns without heat, there is no heat during a cycle, the dryer stops mid-cycle, or you notice a burning smell near the blower area. Some models may display a fault code or a blinking LED indicating heating circuit issues. If the dryer runs but produces no heat, the fuse is a plausible cause, especially after a period of poor venting or lint buildup. A blown fuse is a one-way event; it cannot be reset like a breaker, and attempting to bypass it can create serious safety hazards. If you find that heat is missing after the dryer has previously overheated, inspect the vent path and lint screen as contributing factors. In short, a fuse failure is a safety signal that your drying system needs attention and possible replacement.

Tools, safety gear, and prep work

Before you begin, unplug the dryer and turn off the home's circuit if possible. Safety gear should include insulated gloves and eye protection. Gather a digital multimeter with continuity testing capability, insulated tools, and a replacement thermal fuse rated for your model. A few photographs of wiring connections before disassembly help you restore everything correctly. Keep a labeled container for screws and a small flashlight to illuminate hard-to-see areas. Have the dryer’s user manual handy to confirm fuse location and any model-specific cautions. These preparatory steps reduce the risk of electric shock and ensure you identify the correct fuse during testing. Easy DryVent emphasizes never testing live circuits; always work with power disconnected.

How to access the thermal fuse housing safely

Accessing the thermal fuse typically involves removing the dryer panels or front kick panel to reach the blower housing or heating assembly. Start by unscrewing the outer cabinet screws and gently lifting the back panel or front panel as required by your model. Use a magnetic tray to collect screws and avoid losing small parts. Once the interior is exposed, locate the small rectangular fuse held by a clip or cradle near the blower housing. Do not touch exposed wires and avoid twisting the wiring harness. If you encounter resistance or tangled wires, pause and take a photo to reassemble correctly. Cooling the area with a quick blast of air can help you work safely around hot metal components. Remember: a blocked or overheated dryer increases fuse stress, so confirm vent cleanliness before proceeding further.

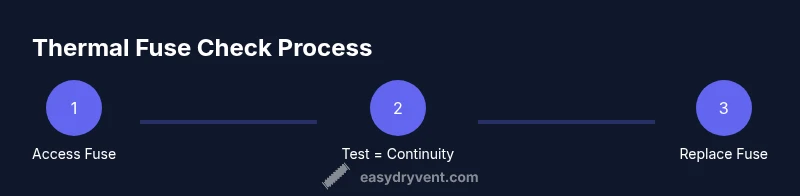

How to test the fuse with a multimeter

With power completely disconnected, carefully disconnect the wires from the thermal fuse leads. Set your multimeter to the continuity/ohms setting and touch the probes to each fuse terminal. A healthy fuse should show continuity, typically a low resistance reading, or beep in continuity mode. If the meter shows no continuity (open circuit), the fuse is blown and must be replaced. If you see very high resistance, double-check the wiring posts and ensure there is no corrosion. When testing, avoid bending the fuse leads or breaking the ceramic body. If the fuse test is inconclusive, reconnect the harness, inspect the connections, and test again. Always replace the fuse with a compatible part and recheck your work after installation.

Replacing the fuse: considerations and steps

Replacement requires selecting a compatible thermal fuse rated for your dryer’s make and model. Do not use improvised fillers or bypass the fuse to restore heat. Install the new fuse in the same orientation as the old one and secure it with its clip or cradle. Reconnect the wiring harness carefully and confirm there are no loose connections. Before powering the unit, reassemble the outer panels so that there are no loose parts. After reassembly, plug the dryer back in and perform a short test cycle to ensure the heater engages and heats normally. If the dryer still does not heat, further investigation into lint buildup, vent obstruction, or thermostat issues may be necessary. Easy DryVent reminds readers to dispose of the old fuse responsibly and to verify voltage compatibility with the new fuse.

Post-replacement testing and safe operation

Run a full test cycle with a load that simulates typical use. Listen for the hum of the motor and the sound of the heater engaging. If heat remains absent, recheck the fuse installation and vent path for blockages. Check for heat within 5–15 minutes of the cycle starting to confirm proper operation. Monitor for unusual smells or excessive heat around the fuse area during the initial runs. If everything functions as expected, allow the dryer to cool between cycles for the first few uses. Ongoing issues after replacement should be treated as a potential control board or thermostat problem, not simply a fuse fault. The Easy DryVent team recommends performing regular vent inspections to maintain safe temperatures and extend component life.

Maintenance habits to prevent future fuse failures

Preventing future fuse failures begins with proactive vent and lint management. Clean the lint screen before every load and perform a thorough vent cleaning at least twice a year, or more often in homes with multiple occupants or pets. Check that the vent duct is free of kinks and blockages and that outdoor vent louvers open fully. Ensure the dryer is level to avoid vibrations that can loosen connections over time. Schedule routine inspections of the blower housing and heating elements, especially if you notice reduced airflow or longer drying times. By combining proper maintenance with careful testing after any repair, you reduce the likelihood of future fuse failures and keep your dryer operating efficiently. The Easy DryVent team notes that consistent maintenance is the most effective defense against thermal fuse wear and overheating.

When to call a professional for fuse issues

If you are uncomfortable with electrical testing or cannot locate the fuse location confidently, it is prudent to contact a qualified appliance technician. Handling electrical components without proper precautions can cause shock or fire hazards. A professional can confirm the fuse is the correct part, inspect related components such as thermostats and heating coils, and perform a complete diagnostic to prevent recurring failures. Even if you replace the fuse yourself, consider a post-repair inspection to ensure the venting system and ducting are clean and functioning correctly. For many homeowners, combining DIY checks with professional assessments provides a safe, effective solution to dryer heating problems.
