4 Prong Dryer Power Cord: Safety, Installation, and Maintenance
Learn what a 4 prong dryer power cord is, how it works, when to replace it, and how to install it safely. Practical steps for homeowners from Easy DryVent.
A four-prong dryer power cord is a type of electrical cord that connects a clothes dryer to a four-wire outlet, providing two hot conductors, a neutral, and a ground.
What is a 4 prong dryer power cord and why it matters
A four prong dryer power cord is a type of electrical cord that connects a clothes dryer to a four-wire outlet, providing two hot conductors, a neutral, and a ground. The separation of the ground from the neutral reduces the risk of stray currents and improves safety during operation. According to Easy DryVent, this configuration aligns with modern electrical safety standards and common residential wiring practices. Compared with older three-prong cords, a 4 prong dryer power cord eliminates the bonded neutral-ground path at the dryer, helping to prevent potential shock hazards and equipment faults. For households installing or upgrading, using a four-wire setup supports compliance with current wiring codes and safer appliance grounding. The cord is designed for appliance use, typically UL-listed and rated for the heat and current drawn by a dryer under normal operation. If you still have an older three-wire outlet, upgrading to a four-wire outlet may be necessary to support a safe and reliable 4 prong cord connection. This upgrade can reduce the risk of ground faults and improve overall dryer performance.
The wiring basics behind four prong cords
Understanding the four-wire layout helps homeowners make informed decisions. A 4 prong dryer power cord uses two hot conductors, a neutral, and a ground. The two hot wires carry most of the dryer's heating and motor load, the neutral provides the return path for unbalanced current, and the grounding conductor protects against faults by directing stray current away from you. On the dryer side, the terminal block has four screws or terminals; the corresponding cord wires must be connected to each terminal in the correct order. The ground wire, usually green or bare, should be securely fastened to the grounding screw or chassis. Crucially, never bond neutral to ground at the dryer when using a four-wire cord. Always verify that the cord is UL-listed for appliance use and that the outlet and wiring can handle the dryer’s amperage. Regular inspection of insulation, connections, and strain relief helps prevent heat buildup and potential hazards.
Signs you need replacement and what to check
A worn or damaged 4 prong dryer power cord should be replaced promptly. Look for visible cracks in the insulation, scorching, melted jacket material, exposed wires, or a cord that feels soft or becomes extremely warm to the touch during use. Loose or corroded terminal connections at the dryer end can also indicate a problem, as can a plug that fits loosely in the outlet or emits a burn odor. If the cord is damaged or you notice arcing or a tripping breaker when the dryer runs, stop using it immediately and disconnect the power. Replacing a damaged cord promptly reduces the risk of electrical shock, fire, or further appliance damage. Easy DryVent recommends inspecting the cord annually during routine maintenance and replacing it with an UL-listed 4 prong dryer power cord that matches the dryer's outlet configuration and the outlet’s rating.
How to choose the right cord for your dryer
Choosing the right 4 prong dryer power cord involves matching the cord to the dryer's terminal block and the home's outlet. Look forUL-listed cords rated specifically for dryer use, with the correct gauge and length to reach the outlet without tension. Consider cord length to avoid excess slack that can snag or kink, while ensuring enough slack for service access. The two hot conductors should be identical gauge and rating, with the neutral and ground rated for the appliance’s current. Some cords include color-coded insulation to help with correct connection, but always follow the dryer’s manual or the terminal block markings. If you are unsure about compatibility, consult the dryer's manufacturer guidelines or hire a licensed appliance technician. Remember that a 4 prong setup requires a four-wire outlet and a dryer that is configured for four-wire operation.
Installation and replacement steps
Safety first: unplug the dryer from the wall and, if feasible, switch off the house circuit at the main panel. Access the dryer terminal block behind the back cover and remove the old cord, noting the order of connections. Attach the two hot wires to the outer terminals, the neutral to the center terminal, and the ground wire to the grounding point on the dryer chassis. Ensure all connections are snug but not over-tightened. Reinstall the strain relief to protect the cord from sharp edges and movement. Replace the back cover, plug the dryer back in, and run a test cycle with the door closed to confirm proper operation and grounding. If you are unsure about any step, contact a licensed electrician or appliance technician—safety comes first. The ground should be isolated from the neutral on a four-wire system, which is a key safety distinction from older three-wire configurations.

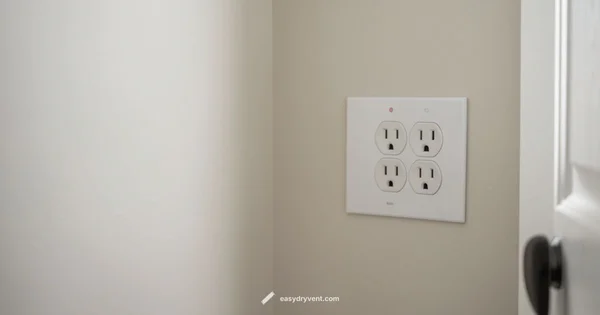

Outlet compatibility and what it means for you
A four-prong cord requires a corresponding four-wire outlet. If your home still has a three-wire outlet, you may need to upgrade the outlet and remove any bonding strap that ties neutral to ground on the dryer side. Some homes also require panel adjustments or reconfiguration by a professional. Always verify the outlet type in your laundry area and match it to the cord rating and dryer manual. The outlet should be accessible and free from moisture, heat sources, or physical damage. If you must upgrade wiring or outlets, plan for a safe, code-compliant installation. Easy DryVent emphasizes that any changes to electrical wiring should be performed by a qualified technician to ensure compliance with local codes and safety standards.
Maintenance tips to extend cord life
Regular maintenance helps extend the life of your 4 prong dryer power cord. Inspect the cord visually at least once a year for cracks, bends, or heat damage, and check the jacket for stiffness or stiffness when flexed. Avoid sharp bends near the ends and do not crush or pin the cord behind the dryer. Use a proper strain relief and ensure the plug fits snugly in the outlet. Replacements should use UL-listed cords with the correct rating for your dryer and outlet. Periodic testing with the dryer running can help identify loose connections or overheating at the terminal block. Keep the area around the outlet dry and free from lint, dust, and moisture that can degrade insulation over time.
Common mistakes to avoid
Common mistakes include using a non UL-listed cord or attempting to improvise a ground bond with adapters. Avoid using an extension cord or outlet adapter with a dryer, as these configurations can create heat buildup and fire risk. Do not reuse a damaged cord or bypass the strain relief. Never connect a four-wire cord to a three-wire outlet without upgrading the outlet and potentially reconfiguring the dryer. Finally, do not ignore signs of wear such as discoloration, scorch marks, or warmth; replace the cord promptly to maintain dryer safety and performance.
Quick reference maintenance checklist for DIYers
- Confirm the dryer and outlet are rated for a four-wire configuration.
- Inspect cord insulation and terminal ends for damage.
- Use UL-listed cords and correct length to avoid tension.
- Install and secure strain relief to protect the cord.
- Test operation with the door closed and listen for unusual noises or smells.
- Schedule professional inspection if you notice heat, scorch marks, or arcing.
Common Questions
What is a 4 prong dryer power cord and what does it do?
A 4 prong dryer power cord is a four-wire connection that supplies two hot lines, a neutral, and a separate ground to a clothes dryer. It improves safety by keeping the grounding path separate from the neutral. This setup aligns with modern electrical standards for home use.
A four-prong dryer cord supplies two hot wires, a neutral, and a separate ground to the dryer for safer operation.
Can I replace a 3-prong cord with a 4-prong cord?
Yes, but it typically requires upgrading the outlet to a four-wire configuration and possibly removing a bonding strap inside the dryer. If you are unsure about electrical work, hire a licensed professional to complete the upgrade safely.
Yes, but you may need to upgrade the outlet and adjust the dryer’s bonding strap. Consider hiring a pro for safety.
Is it safe to install a dryer power cord myself?
DIY installation is possible for those with basic electrical knowledge, but it carries risk of shock or fire if done incorrectly. Ensure power is off, use the correct UL-listed cord, and follow the dryer manual. If in doubt, contact a licensed electrician or appliance technician.
It can be done by a confident DIYer, but if you’re unsure, hire a professional for safety.
How do I know what cord length to buy?
Choose a length that reaches the outlet with a little slack for service work, without bending or stretching. The cord should be rated for dryer use and match the dryer’s outlet and terminal block. Prefer a flexible jacket designed for appliance cords.
Pick a length that reaches the outlet with some slack and matches the dryer's requirements.
Do I need to replace the outlet when switching to a 4-prong cord?
In most cases, yes. A four-wire outlet is required for a 4 prong dryer cord. If you upgrade, also ensure the outlet is properly grounded and that the wiring follows local safety codes. A professional can confirm compatibility.
Usually yes. You’ll likely need a four-wire outlet and proper grounding.
What should I do if my cord is hot or smells burnt?
If the cord feels hot or emits a burnt odor, stop using the dryer immediately and unplug it. Inspect for damage, and replace the cord with a UL-listed model. If signs persist after replacement, have a technician inspect the dryer terminal block for faults.
If it smells or gets hot, unplug and replace promptly, then check for further issues.
Key Points
- Know that a 4 prong dryer power cord provides two hot wires, a neutral, and a separate ground.
- Always use a UL-listed four-prong cord and ensure the outlet supports four-wire operation.
- Inspect the cord annually and replace if there are cracks, scorch marks, or warmth.
- Do not bond neutral to ground at the dryer when using a four-wire configuration.
- If unsure, hire a licensed professional to perform installation or replacement.
