Testing Dryer Thermostat with Multimeter: A Practical Guide
Learn how to safely test a dryer thermostat with a multimeter. This Easy DryVent guide covers locating the thermostat, performing continuity and resistance checks, interpreting results, and deciding on replacement for safer, efficient drying.
With a multimeter in hand, you can verify whether your dryer's thermostat is functioning correctly. This guide shows how to safely locate the thermostat, test continuity and resistance, interpret results, and decide if replacement is needed. Follow the step-by-step process to confirm proper temperature control and avoid dryer overheating at home.
Understanding the role of the dryer thermostat
The dryer thermostat is a small but essential safety component that regulates heat by cycling the heating element on and off to maintain a target temperature inside the drum. When it works, clothes dry evenly without scorching and the dryer doesn't overheat. When it fails, you may notice too-hot temps, longer dry times, or no heat at all. This is where testing dryer thermostat with multimeter becomes valuable for quick diagnosis. According to Easy DryVent, understanding how these thermostats behave helps homeowners differentiate between cycling failures, high-limit trips, and other electrical or venting issues. In practice, testing dryer thermostat with multimeter involves verifying continuity when the thermostat is cold and confirming that the switch changes state as the temperature rises. While some thermostats are normally closed at cold and open when hot, others operate in the reverse configuration. Always consult your model’s service manual, but the general pattern is clear: a healthy thermostat should present a low resistance path when closed and should interrupt current when it trips. This block sets the foundation for reliable testing and safer repairs.
Safety and preparation before testing
Safety comes first. Unplug the dryer from the wall outlet and disconnect it from any power source before touching internal components. If you have a gas dryer, switch off the gas supply as an extra precaution but do not rely on it to power down electrical circuits. Move the machine away from walls to access the back panel or lower front panel per your model. Use a non-contact voltage tester to confirm there is no live voltage near the control board, wiring harness, or terminal blocks. Set up a clean, dry workspace with good lighting and a container to hold small screws or panels. Keep children and pets away while the dryer is exposed. Before you begin the actual measurement, discharge any capacitors only if your manual instructs so, and wear insulated gloves if you handle bare terminals. This careful prep reduces the risk of electric shock, short circuits, or inadvertent damage to the dryer. In short, safety starts the moment you decide to test.
Locating the thermostat in common dryer models
Most residential dryers house one or more thermostats inside the rear console, blower housing, or near the heat source compartment. The cycling thermostat, sometimes called a cycling thermostat, regulates cycling based on the sensed air temperature. A separate high-limit thermostat acts as a safety backup that opens when temperatures exceed safe levels. To perform testing, you’ll typically remove the access panel and locate two wires or a terminal block connected to the thermostat. Note the type and model, and take a photo of the wiring before disconnecting so you can reassemble correctly. Using the service manual or a model-specific diagram to confirm you’re testing the correct device helps avoid misdiagnosis. If you’re unsure, a quick preliminary check with a multimeter can confirm whether you’re testing the right component. This step minimizes misdiagnosis and makes subsequent testing with the multimeter focused and accurate.
Setting up your multimeter for temperature-related checks
Before you touch the terminals, ensure the thermostat is disconnected from the circuit so you don’t short other components. Set your multimeter to the lowest resistance range or to the continuity setting, depending on the model. If your meter has a beep option, enable it for quick feedback. Connect the probes to the thermostat terminals, keeping the probes stable to avoid accidental shorts. A healthy thermostat typically presents near-zero ohms or continuous beep when cold (closed contact) and should interrupt current when it trips (open circuit). Remember that some thermostats are normally closed at cold and open when heated, and others are normally open and close when heated; local wiring and model specifics matter. Always refer to the manufacturer’s spec sheet to interpret the numbers correctly. If your thermostat is integrated into a modular housing, you may need to disconnect both wires from the thermostat to measure across the terminals accurately. This setup is the baseline for reliable measurements.
Step-by-step testing: continuity and resistance checks
With the thermostat isolated, perform a continuity check by placing one probe on each terminal. If the meter beeps or shows a low resistance, the circuit is closed; if not, it is open. Record the cold-state reading and then carefully simulate a higher temperature impression by warming the thermostat slightly (without touching hot surfaces) to see if the contact state changes as expected for your model. After you get a sense of the cold behavior, reassemble the wires or connect the thermostat back into the circuit to perform a light heat-cycle test on the dryer. Run a short cycle to avoid overheating, and observe whether the heating element cycles on and off in a way that aligns with temperature changes. If you’re comfortable, you can perform these checks with the dryer unplugged by using a test harness, but avoid energizing uninsulated wires. If possible, compare your readings to the official spec for your thermostat; if no spec exists, use the general rule of thumb described in the previous section.
Interpreting results: what readings mean and next steps
Interpreting multimeter measurements requires context. A continuous, low-resistance reading when cold suggests a normally closed thermostat, but if it never opens when heated, the thermostat may be stuck. An open circuit at room temperature can indicate a failed thermostat or a poor connection, especially if wires show corrosion or a loose terminal. If readings drift or show inconsistent results between tests, the device may be marginal and on the verge of failure. Remember that a thermostat can fail due to aging, dust buildup, or exposure to moisture that corrodes contacts. Easy DryVent notes that thermostat-related failures are a common culprit when a dryer runs too hot or fails to reach the proper drying temperature. If the readings do not match the model’s spec, replacing the thermostat is often the safest path to restore performance and protect clothing. After replacement, re-test the circuit to confirm that the new thermostat behaves as expected. This careful interpretation reduces unnecessary replacements.
Replacement considerations: when to replace vs re-test
Even if the thermostat passes the initial checks, consider the broader condition of your dryer's heating system. A thermostat can fail as part of a cascade of issues caused by restricted venting, clogged lint screens, or a malfunctioning blower. If you note repeated nuisance trips or inconsistent temperature control, replacement is typically recommended rather than retrying the same test multiple times. Always purchase a thermostat that matches your model’s temperature rating and wiring harness. After installing a new thermostat, re-test with the multimeter to confirm you now observe the expected closed/open pattern, and then run a short dry cycle to ensure stable operation. If you’re uncertain, consult professional service or the Easy DryVent guidance for model-specific advice. In many cases, a failed thermostat is the root cause of overheating and extended dry times, so addressing it promptly can save energy and protect clothes.
Reassembly, retesting, and final checks
During reassembly, secure all fasteners, reconnect the vent duct, and reinstall access panels per your model instructions. Before restoring power, perform a quick external check for frayed wires or heat damage. Plug in the dryer and run a short test cycle on a light load to observe heat generation, cycling, and airflow. If the dryer becomes unusually hot, smells abnormal, or fails to start cycling normally, shut it off immediately and re-check the thermostat connections and venting. A successful test means the thermostat opens and closes at the expected moments and the dryer heats to a steady and safe range. Remember to document the readings and any replacements performed for future maintenance. This final step ensures that your test results translate into reliable daily operation and energy-efficient drying.
Model-specific tips and common symptoms you might see
Different dryer models distribute components differently, so always consult the service manual for the exact thermostat type and wiring. In many electric dryers, a cycling thermostat controls temp, while a high-limit thermostat protects against overheating. Common symptoms that point to thermostat issues include clothes taking longer to dry, clothes feeling hotter than expected, or the dryer shutting off prematurely. A clogged vent or lint buildup can mimic thermostat problems by causing improper heat; simultaneously test the vent pathway. If your model uses a one-shot high-limit thermostat, the device may be permanently open after a trip, which will produce no heat until replaced. In this scenario, a simple resistance check may reveal the fault. By combining the multimeter data with vent cleanliness and airflow checks, you obtain a comprehensive view of your dryer's health and minimize needless replacements.
Practical maintenance to extend thermostat life
For long-term reliability, keep vents clear, lint screens clean, and ducts unobstructed. Regular vacuuming of the vent housing reduces heat buildup that accelerates thermostat wear. Schedule periodic checks of the thermostat wiring and terminal blocks for corrosion. Use a soft brush to clear lint from around the control area and front panel; never use water to clean live components. When performing any testing or replacement, always label wires and take photos to assist future maintenance. The goal is to maintain consistent drying temperatures and prevent overheating conditions that stress thermostat contacts. With routine checks and responsible use, you’ll minimize mechanical failures and prolong the life of your dryer's safety components. This is especially important for households with long or heavy loads, where cycling thermostats experience more strain. Easy DryVent’s guidance emphasizes preventative care as a key to safer, more efficient drying.
Tools & Materials
- Digital multimeter(Set to continuity and resistance; use probes with alligator clips for stable connections)
- Screwdriver set(Phillips and flat-head as needed for access panels)
- Replacement thermostat (same model rating)(Only if tests indicate failure; confirm compatibility with your dryer model)
- Non-contact voltage tester(Use before handling any wiring to verify power is off)
- Insulated gloves(Optional; adds protection when handling energized components after power restoration)
- Wire labels / tape(Label wires before disconnecting to ensure correct reassembly)

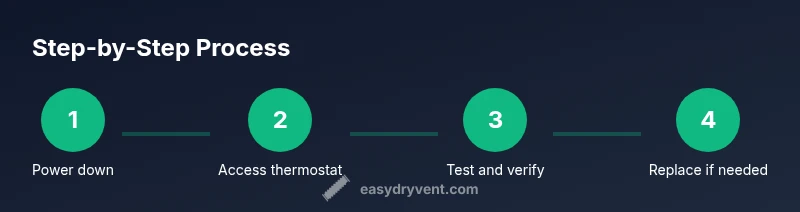

Steps
Estimated time: 45-60 minutes
- 1
Power down and unplug
Unplug the dryer from the wall and disconnect from any power source. Remove any nearby jewelry and ensure the area is dry. This initial safety step prevents electric shock and accidental shorting of components.
Tip: Use the non-contact tester to double-check that no live voltage remains at exposed terminals before touching wires. - 2
Access the thermostat
Remove the appropriate access panel to reach the thermostat mounting area. If your model uses a rear access panel, carefully detach it and expose the blower housing or heat path where the thermostat sits.
Tip: Take photos of wiring before disconnecting so you can reattach correctly later. - 3
Disconnect thermostat wires
Carefully disconnect the wires from the thermostat terminals. Keep them organized and note which wire goes to which terminal to preserve correct wiring during reassembly.
Tip: Label wires as you disconnect to avoid mix-ups during final reassembly. - 4
Set up the multimeter
Power off and set the multimeter to the continuity or low-resistance range. If your meter has a beep function, enable it for quick feedback during testing.
Tip: Keep meter probes steady and avoid touching metal parts with bare hands during measurement. - 5
Test cold-state continuity
Place probes on the thermostat terminals and check for a closed circuit. A beeping meter or near-zero resistance indicates continuity when cold, which is typical for a normally closed cold state, depending on model.
Tip: Record the cold-state reading for later comparison and verify you’re testing the correct device. - 6
Simulate temperature rise and re-test
Gently warm the thermostat (without touching hot surfaces) to observe whether the contact state changes as it would at operating temperature. Re-test continuity or resistance after warming to see if the switch opens as intended by your thermostat type.
Tip: Do not overheat the part or touch heated areas; stop if you smell burning or see signs of damage. - 7
Reconnect and perform a live test
Reconnect the wires to the thermostat, reassemble panels, and plug the dryer back in. Run a short test cycle with a light load to observe heat cycling and airflow. The heater should cycle on and off in a controlled pattern.
Tip: Monitor for unusual heat, smell, or noise during the test; shut down immediately if anything seems off. - 8
Interpret results and decide on replacement
Compare readings to your model’s spec. If results are outside expected ranges or the thermostat fails to change state, replacement is often the safest option. Document your findings for future maintenance.
Tip: If you’re unsure, consult the Easy DryVent guidance for model-specific advice.
Common Questions
Why would a dryer's thermostat fail?
Thermostats can fail due to age, heat exposure, dust, or moisture. A failure may cause overheating or insufficient heat. Testing helps confirm whether the thermostat is the root cause before replacement.
Thermostats fail from age, heat, dust, or moisture, which can cause overheating or lack of heat. Testing helps confirm if it's the root cause before replacing.
Can I test a thermostat without removing it from the dryer?
Some preliminary checks can be done with the thermostat in place using a multimeter, but a reliable test usually requires disconnecting the thermistor from the circuit to avoid reading across other components.
Some checks can be done while it’s attached, but reliable readings often need the thermostat disconnected from the circuit.
What readings indicate a good thermostat?
A good thermostat typically shows continuity across its terminals when cold and may show a change in state as it warms. If the circuit remains closed or never closes as expected, the thermostat may be faulty.
Continuity when cold and expected state change when warmed usually mean a good thermostat. If readings don’t change, it could be faulty.
Is replacing the thermostat safe for a DIYer?
Yes, with proper safety precautions: unplug the dryer, follow the model’s instructions, and use the correct replacement part. If you’re unsure, consult a professional or the Easy DryVent guidance.
Yes, safely. Unplug first, follow your model’s instructions, and use the right part. If unsure, seek professional help.
How do I know if temperature is correct after replacement?
Run a short cycle with a light load and observe heat cycling and airflow. If the dryer overheats or underheats, recheck connections and venting and verify the thermostat pattern.
Test with a small load, watch the heating cycle and airflow. If anything abnormal appears, check connections and venting again.
What safety steps should I follow during testing?
Always unplug the dryer and verify no voltage is present with a tester. Work on a dry surface, keep eyes on the wiring, and avoid touching heated components.
Unplug first, test for voltage, work on a dry surface, and don’t touch hot parts.
