How to Replace the Heating Element in a GE Dryer
Learn how to safely replace the heating element in a GE dryer with our practical, step-by-step guide. Includes model matching, tools, safety tips, testing, and maintenance to keep your dryer running efficiently.
Replacing a GE dryer's heating element is a doable DIY task when you power off, unplug the unit, access the rear panel, and install a compatible GE heating element kit. This guide walks you through identification, removal, installation, and post‑test checks to restore safe, even drying. Expect 60–90 minutes depending on your model and experience.
Why replacing a heating element ge dryer may be necessary
If your GE dryer runs but clothes come out cold or barely warm, a faulty heating element is a leading cause of no-heat conditions. Other symptoms include inconsistent heat, a burnt smell inside the drum, or a tripped circuit breaker when the dryer starts. Replacing the heating element can restore proper heat production and airflow, improving drying times and energy efficiency. According to Easy DryVent, heating element failures are a common, fixable cause of no-heat in residential models, making this a practical DIY repair for homeowners with basic tool skills.
Safety first: essential precautions before you begin
Safety is non‑negotiable. Always unplug the dryer and, if it's a gas model, shut off the gas supply before starting any work. Use a sturdy work area and ensure the dryer is completely cool before touching internal components. Wear safety glasses and gloves to protect against sharp metal edges and hidden hot surfaces. Keep kids and pets away, and never bypass safety switches or the thermal fuse. These steps reduce the risk of electric shock, fire, or toxic fumes and help you work more confidently.
Identify the correct GE heating element for your model
GE dryers use different heating element assemblies depending on the model and serial number. Start by locating the model label on the back or inside the door frame. Note the exact model number, voltage, and wattage, then cross‑check with GE replacement parts or compatible aftermarket kits. The goal is to obtain a heating element assembly that matches the original unit’s configuration and connector layout. Mismatched parts can lead to poor heating or electrical hazards, so take time to verify compatibility.
Where to find the heating element in a GE dryer
In most GE rear‑vented dryers, the heating element is housed in a chamber behind the rear bulkhead. Access usually requires removing the rear panel or a service panel, depending on the model. The element is connected to the control board or timer with insulated wiring and a pair of terminals. Before you touch anything, map out how the wires connect to the element, and take a quick photo or label the wires to ensure correct reattachment later. This careful reconnaissance helps avoid miswiring and heat‑related damage during reassembly.
Common causes that accompany element failure
Element failure often follows filament burnout from overheating, short circuits, or a blocked vent causing excessive heat. A clogged vent can stress the element and shorten its life, so plan to inspect the vent hose, lint filter, and exhaust duct while you’re in there. If you’ve had repeated heat issues, consider testing the thermal fuse and high‑limit thermostat as part of the replacement job, since a failed fuse can mimic a bad element. Regular vent maintenance reduces recurrence and extends overall dryer performance.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Philips #2 is common for dryer panels; have at least 4–6 in. length for reach)
- Nut driver or socket set(Needed to remove rear bulkhead screws and clamps)
- Multimeter(For continuity and resistance checks on the element and thermal fuse; set to ohms)
- Replacement GE heating element kit(Match model number; include mounting hardware if provided in kit)
- Voltage tester or non‑contact tester(Extra safety check before touching any live terminals)
- Wire connectors and insulating tape(Use heat‑resistant connectors if needed; ensure secure, insulated connections)

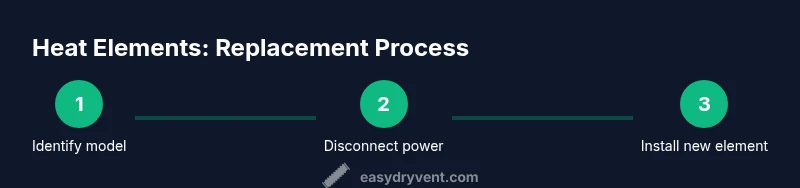

Steps
Estimated time: 60-90 minutes
- 1
Power off and unplug
Confirm the dryer is unplugged from the outlet and, for gas models, the gas supply is shut off. This is the critical first step to prevent electric shock or gas leaks while you work. If you must move the appliance, have a helper and clear a wide path.
Tip: If you’re unsure whether power is cut, test a known outlet with a voltage tester before touching wires. - 2
Remove the rear access panel
Use the appropriate screwdriver or nut driver to remove the rear panel screws. Carefully set the panel aside, exposing the heating element housing. Do not force panels or wires; if a panel is stubborn, recheck screw locations.
Tip: Keep track of screws by type and where they came from; a small magnetic tray helps prevent loss. - 3
Inspect the element housing and wires
Visually inspect the element housing for signs of scorching or melted insulation. Note how the wires connect to the element terminals. A quick photo helps preserve the original wiring layout for reattachment.
Tip: Look for a loose terminal or damaged insulation—these are common failure indicators. - 4
Test the old element for continuity
Set your multimeter to the resistance or continuity setting. Remove any jumpers from the element terminals and test across the two terminals. A reading near zero or infinity indicates a failed element.
Tip: If you’re unsure about the reading, compare with a known good element or consult the model’s service manual. - 5
Disconnect and remove the faulty element
Carefully disconnect the terminal connectors and detach the element from its mounting clips or brackets. Note how it is seated so the new element can mount in the same position without stressing wires.
Tip: Label wires or take a clear photo before disconnecting to ensure proper reconnection. - 6
Install the replacement heating element
Place the new element into the housing, align mounting points, and reattach terminal connectors. Ensure all connections are snug but not over-tightened, then route wires to avoid pinch points.
Tip: Secure any loose wires with wire ties away from moving parts or sharp edges. - 7
Reassemble the dryer body
Reinstall the rear panel, ensuring all screws are in place and panels sit flush. Double-check that vents and lint screens remain accessible and undisturbed.
Tip: Avoid overtightening screws which can strip threads or warp the panel. - 8
Test the dryer function
Plug the unit back in, restore any gas supply if applicable, and run a short heat cycle without clothes to verify heat is generated and airflow is unobstructed. Listen for unusual noises or smells.
Tip: If heat is absent after replacement, re-check wiring and fuses; a faulty thermal fuse can stop heat even with a good element.
Common Questions
Can I replace a GE dryer's heating element myself, or should I hire a pro?
If you have basic electrical knowledge, basic hand tools, and can follow model-specific instructions, a heating element replacement is doable. However, if you encounter gas lines, complex wiring, or missing parts, consult a professional.
If you’re comfortable with basic electrical work and follow the model’s manual, you can DIY. Otherwise, a pro is safer for gas models or uncertain wiring.
What are the signs that a heating element is failing in a GE dryer?
No heat during a dry cycle, inconsistent heat, or a burnt smell are typical signs. A blown thermal fuse or tripped breaker can mimic this issue, so test both components when diagnosing.
No heat, uneven drying, and sometimes a burnt smell indicate possible heating element trouble.
Do I need to replace other parts when changing the heating element?
Often it’s wise to inspect the thermal fuse, high‑limit thermostat, and venting system. Replacing or testing these in the same service may prevent future no-heat problems.
Consider checking the fuse and thermostat too to prevent another failure soon after.
Can a damaged vent cause the heating element to fail prematurely?
Yes. Blocked or restricted vents cause overheating, which stresses the heating element and can shorten its life. Clean and secure the vent during replacement.
A clean vent helps your new element last longer and dries more efficiently.
What safety checks should I perform after installation?
Reassemble panels, ensure there are no loose wires, and perform a test run on a small load. Listen for unusual noises and check for unusual smells during the first cycle.
Run a test cycle with a small load to confirm heat and airflow.
Is it normal for a GE dryer to take longer to dry after a heating element replacement?
If the vent is clogged or the element is not delivering heat, drying times may extend. Ensure airflow is clear and test heat output to confirm proper operation.
If drying seems slow, check the vent and test heat directly to confirm performance.
Watch Video
Key Points
- Verify model compatibility before purchase
- Follow safety steps to prevent shocks or fires
- Test both element and thermal fuse for accurate diagnosis
- Complete reassembly with secure, insulated connections
- Perform a post-test to confirm proper heat and airflow
