LG Dryer D80 Code: Urgent Troubleshooting Guide
Urgent guide to diagnose and fix the LG dryer D80 code. Learn quick resets, safe checks, diagnostic flow, and when to call a pro for drum or motor issues.
LG D80 indicates a drum/drive fault that stops the drum from turning. The quickest relief is a safe reset, check for a jam, and inspect the drive belt and motor area for obstructions. If the code persists after a reset, unplug, wait five minutes, and arrange service to avoid further damage.
Understanding the lg dryer d80 code
The D80 code on an LG dryer is a diagnostic signal indicating the drum may not be turning due to a drum or drive-related fault. According to Easy DryVent, this type of error usually points to a mechanical interruption rather than a simple sensor fault. Common culprits include a jammed drum from lint or small clothes caught between the drum and cabinet, a worn or broken drive belt, a faulty idler pulley, or motor issues that prevent the drum from rotating. When D80 appears, you may notice the drum feels stiff, the motor hums without turning, or the drum stalls during startup. Before diving into tools, the first step is to ensure safety: unplug the unit, remove any loads, and avoid forcing the drum by hand. This reduces the risk of damaging the belt or motor. If you can safely reach the back panel, a quick visual check for obvious wear or disconnections can help identify the likely cause. The goal is to determine whether this is a simple jam and belt problem or something more complex that requires professional service.
Quick checks you can perform safely
Before you unscrew panels or reach into moving parts, perform these non-destructive checks that often resolve D80 without tools. First, unplug the dryer and remove any load from the drum. Then, rotate the drum by hand to feel for binding or resistance; a stiff spin usually points to belt or roller wear. Inspect the lint screen and the front vent path for blockages, since poor airflow can indirectly affect motor load and performance. Look for obvious jams, such as a sock or small clothing item lodged between the drum and the cabinet. With the dryer unplugged, visually inspect the belt route from the back (if you’re comfortable doing so) for cracks or breaks. Finally, reseat any loose electrical connectors you can reach without opening the main housing. If you don’t detect a clear jam or belt issue, proceed to the diagnostic flow or call a technician.
Diagnostic flow: symptom to solution
The symptom to watch for with the D80 code is that the display lights and indicates an error while the drum refuses to rotate. Based on common patterns, the most likely causes are drum obstruction or a broken/loose drive belt (high likelihood), followed by belt tension issues or a slipping pulley (medium likelihood), and rare control board or motor faults (low likelihood). For each cause, a corresponding fix exists: if a jam is present, remove the object and test rotation; if the belt is worn or broken, replace it; if the motor or control board is suspect, prepare for professional service. Always verify power is disconnected before inspecting any components, and re-test after each fix. This flow helps you prioritize actions and avoid unnecessary disassembly. If at any point you feel unsure, stop and contact a professional to prevent further damage.
Step-by-step fix for the most common cause
- Power down and unplug the dryer. Verify there is no load in the drum and that the outlet is de-energized. Ensure you have a stable workspace and adequate lighting. Tip: Take a photo of any wires or screws before removing panels to simplify reassembly.
- Access the drive area (rear panel if required by your model). Remove the panel to expose the belt path. Inspect the belt for visible cracks, tears, or slack. If the belt appears damaged, plan for replacement before reassembly. Tip: Use a flashlight to examine the belt’s inner side for missing teeth.
- Manually spin the drum to feel for resistance. If the drum binds or locks, identify whether the belt or roller supports are the likely source. Tip: Do not force the drum; forcing can worsen belt damage.
- Inspect the drive belt and idler pulley. Look for glazing, cracks, or a stuck pulley. If the belt is stretched or cracked, replace it. Tip: Align the new belt with the belt grooves to ensure proper tension.
- Check the motor area for debris, loose wires, or signs of overheating. A loose connector or foreign object near the motor can trigger a fault. Tip: Gently reseat connectors and clear any lint buildup around the motor.
- Reassemble the rear panel and ensure all screws are tight. Before running a test cycle, confirm the belt is seated correctly along the pulley and drum. Tip: Keep screws in a labeled tray to avoid misplacement.
- Plug in and run a short test cycle with no clothes, listening for the drum turning freely and the motor operating without hums or grinding. Tip: Observe the user interface for any new error codes during the test.
- If D80 persists, document the steps you’ve taken and contact a qualified technician for a deeper diagnosis, such as motor, control board, or bearing issues. Tip: Have your model number, the exact error code, and a list of recent symptoms ready when you call a pro.
Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Ensure the dryer is fully disconnected from power and there is no load in the drum. This is your first safety step before any inspection.
Tip: Always unplug at the wall outlet, not just switch the dryer off. - 2
Access the drive area
Remove the rear panel (or access cover per your model) to expose the belt path and motor area. Use appropriate tools and wear eye protection.
Tip: Keep screws organized and photograph wiring before removing pieces. - 3
Inspect the drive belt
Check the belt for cracks, wear, or missing teeth. A stretched or cracked belt is a common cause of D80.
Tip: If you replace the belt, route the new belt along grooves exactly as the old one was. - 4
Check for drum jams
Rotate the drum by hand to feel for binding. Remove lint or clothing caught around the drum edge or behind the gasket.
Tip: Avoid forcing the drum; if resistance persists, stop and proceed to further diagnostics. - 5
Inspect the idler pulley and roller
Spin the pulley to detect roughness or wobble. Replace if rotation is not smooth or the bearing is worn.
Tip: Lubrication is not a substitute for worn bearings. - 6
Inspect wiring and connections
Look for loose or damaged wires near the motor and control board. Re-seat connectors if you find any loose connections.
Tip: Disconnect power before touching any wiring. - 7
Reassemble and test
Mount the back panel, reconnect power, and run a short test cycle to see if the drum turns without error.
Tip: Run a test cycle with no load initially to confirm movement. - 8
Plan professional help if needed
If the drum still won’t rotate and D80 persists, arrange service with a qualified technician for motor, bearings, or control-board diagnostics.
Tip: Collect model number, serial, and a log of symptoms to speed up diagnosis.

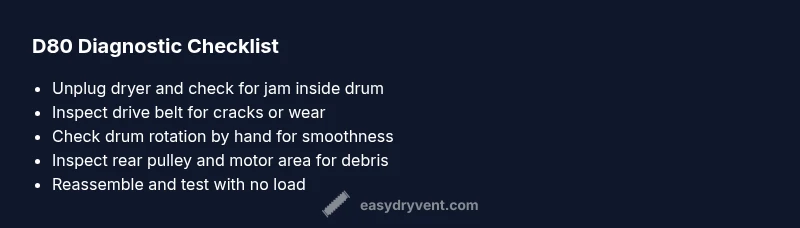

Diagnosis: Machine shows D80 code and the drum won’t rotate
Possible Causes
- highDrum obstruction (jam or foreign object)
- mediumWorn or broken drive belt causing slip or stall
- lowMotor, pulley, or control board fault
Fixes
- easyClear the drum of any jam or foreign object and reassess rotation
- easyInspect and replace the drive belt if worn or cracked
- hardInspect motor, pulley, and control board for faults and plan professional service
Common Questions
What does the D80 code mean on LG dryers?
The D80 code signals a drum or drive fault that prevents rotation. It often points to a jam, belt wear, or a motor/pulley issue that requires inspection.
D80 means a drum or drive fault is stopping rotation. Start with a safe reset and check for jams or belt wear before deciding on professional help.
Can I fix D80 myself without tools?
Many homeowners can perform basic checks and belt inspection safely. More complex issues like motor or control-board faults should be handled by a professional.
You can do simple belt checks at home, but for motor or control-board problems, call a pro.
Is D80 a safety risk to operate the dryer?
D80 itself does not automatically pose an immediate fire risk, but continuing to operate the unit when the drum won’t rotate can cause belt or motor damage.
D80 isn’t an automatic safety emergency, but avoid running the dryer until you resolve the issue to prevent further damage.
How long does a belt replacement typically take?
A belt replacement is a moderate repair that can take identified technicians a short to moderate time depending on model access. Always obtain a quote before proceeding.
A belt replacement takes some time and depends on access to the belt path; get a professional quote.
When should I call LG support or a certified technician?
If D80 persists after safe resets and basic checks, or if you suspect motor, bearing, or control-board faults, contact a certified technician or LG support.
If the issue remains after basic checks, reach out to an LG-certified technician for a precise diagnosis.
Does warranty cover D80 repairs?
Warranty coverage varies by model and purchase date. Check your warranty terms or contact LG support to confirm coverage for the D80 repair.
Warranty depends on model and purchase date; verify with LG to see if D80 repairs are covered.
Watch Video
Key Points
- Repair safely by starting with a reset and jam check
- D80 commonly points to drum/belt issues rather than just sensors
- Follow the diagnostic flow to prioritize fixes
- Call a pro for motor, bearing, or control-board faults
- Regular maintenance reduces recurrence of D80
