Washer Dryer Dimensions: A Practical Space Guide
Understand how washer dryer dimensions affect layout and installation. This guide covers standard sizes, measurement steps, and space planning tips to ensure a safe, efficient laundry area.
Washer and dryer dimensions commonly fall into standard widths of about 27 inches, heights around 38-42 inches, and depths of 28-34 inches. Measure your space with a tape measure and allow for door swing, ventilation, and hookups. Always check manufacturer specs for exact numbers. This helps ensure a proper fit and safe operation.
Why washer dryer dimensions matter
According to Easy DryVent, accurate washer dryer dimensions are essential for safe installation and efficient operation. Improper fit can lead to restricted airflow, poor ventilation, and back-of-machine clearance issues that impact performance. When you understand typical width, height, and depth ranges, you can prepare the space to accommodate hoses, vents, doors, and pedestals. This knowledge also helps when planning for stacking configurations or corner placements in tight laundry rooms. Consistent measurements prevent costly move-ins or adjustments after delivery.
Standard dimensions by type
Most full-size front-loading washers and their matching dryers share a similar footprint: about 27 inches wide, 38-42 inches tall, and 30-34 inches deep. Compact models shrink to roughly 24-27 inches in width and 33-39 inches in height, with depths around 25-28 inches. When pairing a stackable unit, maintain the overall height within the enclosure, and ensure the stacking kit is compatible with both devices. Remember, manufacturers publish exact specs for each model—always verify before purchase.
How to measure accurately in your space
Before shopping, take precise measurements of the intended installation area. Measure width from finished wall to wall, height from floor to ceiling, and depth from the back wall to the furthest edge of any door or cabinet. Don’t forget to account for landing clearance and baseboards. Use painter's tape to mark floor boundaries and door swing paths. Double-check any irregularities (recessed outlets, switches, or irregular corners) that could affect fit.
How door swing and ventilation affect fit
Door swing can dramatically alter usable width and clearance. Front-load doors require enough clearance to open fully, while top-load configurations demand space above the machine for lid movement. Ventilation is equally critical: dryers need proper exhaust paths, and washers generate heat that should escape into a well-ventilated area. Plan for at least a few inches of clearance behind each unit and avoid cramped enclosures that trap heat.
Planning for utilities and hookups
Water supply lines and drain hoses should be evaluated for reach and routing. Check the location of electrical outlets and ensure cords won’t be pinched or stretched. Dryers need a vent path that is free of kinks and sharp bends. If the space is tight, consider an outlet on a nearby wall or a corner arrangement that keeps lines short and straight. Always follow local codes and the appliance manufacturer’s installation instructions.
Choosing between standard, compact, and stackable layouts
If space is generous, a standard-width, side-by-side setup may offer the easiest access to both units. In smaller spaces, stackable configurations save floor area but require correct stacking kits and professional installation. Compact washers offer flexibility but often with reduced capacity and longer cycle times. Evaluate your laundry load, space dimensions, and venting constraints to determine the best fit.
Practical tips for retrofits and corner spaces
In corner installations, align with the corner instead of fighting against it—use angled cabinets or shallow shelves to maximize usable space. Pedestals can add height for accessibility, but verify clearance with doors and drawers. If retrofitting an existing space, mock up the footprint with cardboard templates and test door swing before purchasing appliances. A well-measured setup reduces delivery surprises and improves long-term performance.

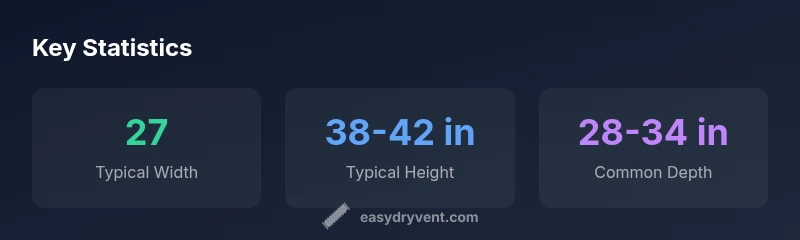

Typical dimension ranges for common laundry configurations
| Model Type | Width | Height | Depth | Notes |
|---|---|---|---|---|
| Full-size washer | 27 inches | 38-42 inches | 30-34 inches | Standard front-load with accessible door |
| Full-size dryer | 27 inches | 38-43 inches | 30-34 inches | Ventilation on back; check clearance |
| Compact washer (20-24-inch) | 24-27 inches | 33-39 inches | 25-28 inches | Fits tight spaces |
Common Questions
What is the typical width of a standard washer and dryer?
Most standard washers and dryers are about 27 inches wide. Always confirm the exact specification in the product manual.
Most standard machines are about 27 inches wide. Check the manual for exact numbers.
Do I need extra clearance around the machines for ventilation and door swing?
Yes. Allow at least a few inches on all sides for ventilation, plumbing, and electrical access. Check local installation guidelines.
Yes—leave space around both units for airflow and doors.
Can I stack a washer and dryer to save space?
Stackable pairs save floor space but require a compatible model and precise installation. Follow manufacturer stacking kits and clearance specs.
Stacking can save space if you use the right kit.
How should I measure for a space with a doorway or cabinet above?
Measure width, height, and depth with doors open, accounting for hinges and clearance. Also measure for door swing path.
Open doors to test clearance; measure width, height, and depth.
Are there energy-efficient dimensions I should look for?
Energy efficiency is more about appliance rating than size, but ensure you have proper ventilation and insulation in the space.
Energy efficiency isn't about size, but good space planning helps.
What about other configurations like compact or front-load combos?
Compact and stackable units exist; verify compatibility with your space, electrical, and venting needs.
There are compact options—check for compatibility.
“Accurate dimensions are the foundation of safe, efficient laundry setups. Always verify the exact product specs and plan for clearance.”
Key Points
- Measure your space before buying to avoid surprises
- Check door swing and clearance for both machines
- Use the manufacturer’s exact specs for final fit
- Consider stacking or compact options for small rooms
