GE Dryer Drive Belt Replacement: Step-by-Step Guide
Learn how to safely replace the drive belt on a GE dryer with this practical, homeowner-friendly guide from Easy DryVent. Includes tools, steps, safety checks, and maintenance tips to keep your dryer running efficiently.
Goal: safely replace the GE dryer's drive belt to restore drum rotation and prevent overheating. You will need basic hand tools, a compatible belt kit, and a few safety checks. Start by unplugging the dryer, then access the belt via the access panel and drum removal as needed—follow the step-by-step guide below.
Understanding Drive Belt Wear on GE Dryers
The drive belt is a critical link between the dryer motor and the drum. Over time, heat, friction, and normal use can cause the belt to stretch, crack, or slip, which leads to poor drum rotation or a noisy operation. GE dryers, like many front-load models, rely on a properly tensioned belt to translate the motor's rotation into the drum's movement. When the belt shows signs of wear, the appliance is more likely to overwork the motor and overheat the blower, reducing drying efficiency and potentially risking a fire hazard if lint accumulates. Regular inspection every 6–12 months is a sensible maintenance habit for homes with frequent loads. This guide walks you through the process of replacing the belt and verifying the dryer is back to safe, efficient operation. As you work, remember that a belt that breaks mid-cycle is a common cause of a non-spinning drum and a dryer that won’t heat properly. The Easy DryVent team emphasizes safety and a careful reassembly to avoid misrouting that could void warranties or cause future issues.
Safety First: Prepare Your Workspace
Always unplug the dryer and shut off the circuit or unplug the dedicated outlet before starting any repair. Move the appliance away from walls to access the rear panel and ensure you have a clear, dry working area. Gather your tools and a stable surface to place screws or small parts. If you have a gas GE dryer, ensure the gas supply is already shut off by a qualified professional before attempting any disassembly in proximity to the exhaust vent. Wear safety glasses to protect your eyes from dust or small debris that can fall when panels are removed. Keep a camera or notes handy to track screw locations and routing paths—this helps during reassembly and reduces the chance of misrouting a belt or wires.
How the Drive Belt Works in a GE Dryer
The drive belt connects the motor pulley to the drum pulley, enabling the drum to rotate as the motor spins. A typical GE dryer's belt route crosses over the idler pulley, which maintains proper tension. When the belt is in good condition, this system remains quiet and efficient, delivering consistent heat and airflow. If the belt is worn or misaligned, you may notice a squeal, a burning smell, or a drum that won’t rotate. The belt is not a user-service component in all GE models, so consult your model’s manual to confirm compatibility before purchasing a replacement belt. In many cases, replacing the belt is a straightforward, cost-effective DIY task that can restore performance when done correctly.
Signs Your GE Dryer Drive Belt Needs Replacement
Look for visible cracks or fraying along the belt’s edges, glazing or shiny spots that indicate glazing on the belt surface, or a loose belt that slips off the pulleys during operation. Unusual noises during operation, such as a high-pitched squeal or thudding from the drum area, can also signal belt wear. If the drum stops spinning but the motor runs, belt failure is a leading suspect. If the belt breaks, you’ll likely hear the drum make no movement at all while the motor spins. In some models, a failed belt will trigger a dryer not spinning or not heating even though the motor runs. If you notice any of these symptoms, plan for belt replacement and inspect related components (idlers, pulleys, and motor shaft) for wear.
Accessing the Belt: Drum, Front Panel, and Idler
GE dryers typically require removing the front panel or the drum to access the belt. Start by loosening the console screws or end caps that secure the front panel. After removing the panel, you may need to tip the drum forward to reach the belt path. Do not force components; if the drum doesn’t easily release, verify that all fasteners are removed and that the drive belt tension is released by rotating the drum slightly. When you locate the belt, note its routing path before removing it. Taking photos during disassembly helps confirm the correct belt routing on reassembly and prevents cross-wiring or misrouting.
Installing the New Belt: Tension and Routing
Place the new belt around the drum pulley first, then thread it over the motor pulley while keeping tension on the belt where required by your model. Ensure the belt sits properly in the grooves of each pulley and over the idler pulley if present. Rotate the drum by hand to ensure smooth movement and no binding. If you see misalignment, double-check the belt routing against the service manual or a credible repair guide. A common mistake is routing the belt under the idler instead of over it; this can cause premature wear or failure.
Reassembly, Testing, and Final Checks
Reassemble the dryer by reversing your disassembly steps, carefully reinstalling any panels and screws. Plug the unit back in and run a test cycle on a low heat setting to observe belt behavior and drum rotation. Listen for unusual noises and watch for any belt slippage. Verify that the exhaust vent is clear and that lint screens are clean before a full test run. If the dryer still exhibits issues after belt replacement, inspect the idler pulley and motor shaft for wear or binding, and consult a professional if needed. Keeping a log of maintenance helps track belt life and informs future service decisions.
Maintenance Tips to Extend Belt Life and Prevent Fires
To maximize belt life, avoid overloading the dryer, which increases belt tension and wear. Clean the lint screen after every cycle and perform periodic vent cleaning to reduce lint buildup that accelerates wear on moving parts. Inspect the drive belt every 6–12 months for cracks, fraying, or glazing. Store extra belts in a dry, labeled container to ensure you replace with the correct belt size when needed. Regular maintenance improves drying efficiency, lowers energy use, and minimizes fire hazards associated with lint buildup and overheating.
Tools & Materials
- Replacement drive belt compatible with GE dryer(Match model family; verify length and groove profile)
- Screwdriver set (Phillips and flathead)(Flathead for pry tools if needed)
- Nut driver or socket set (various sizes)(For removing screws and bolts)
- Torx driver set (optional)(Some models use Torx screws)
- Work glove and safety glasses(Protect hands and eyes from sharp edges)
- Flashlight or headlamp(Better visibility inside cabinet)
- Camera or notepad(Document belt routing before removal)
- Magnetic tray or small parts organizer(Keep screws organized)

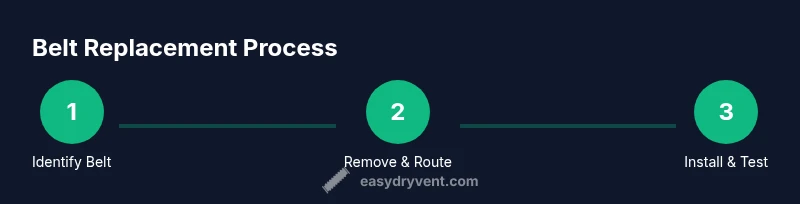

Steps
Estimated time: 60-90 minutes
- 1
Disconnect power and access area
Unplug the dryer or switch off the dedicated circuit breaker. Move the appliance away from walls to access the console and front panel securely. This step prevents shock and keeps the work area safe while you prepare to remove panels.
Tip: Take a quick photo of the control panel wiring before disconnecting any connectors. - 2
Remove front panel or rear access for belt path
Loosen screws or release latches to remove the front panel or access panel as required by your GE model. Keep screws in a tray and note where each goes. Access to the belt path is the key to a clean belt replacement.
Tip: If the drum still covers the belt, you may need to remove the drum after detaching the front panel. - 3
Release and remove the old belt
Relieve tension on the belt by lifting or sliding the idler pulley, then slip the belt off the pulleys. Take note of the belt’s routing pattern so you can replicate it with the new belt. If the belt is cracked or frayed, discard it and inspect pulleys for wear.
Tip: Do not twist or kink the new belt during installation; store it flat to preserve tension. - 4
Position the new belt on the drum pulley
Place the belt around the drum pulley first, ensuring it sits in the groove. Then route the belt toward the motor pulley, following the correct path over the idler pulley if your model uses one. Check alignment before continuing.
Tip: Double-check the belt’s alignment in every pulley groove to avoid slipping. - 5
Reassemble and test fit
Gently reposition the drum if it was moved, reinstall the front/rear panel, and secure all fasteners. Reconnect power and perform a dry run with the door closed to listen for belt movement and check for any abnormal noises.
Tip: Keep a flashlight handy to inspect belt tension while rotating the drum by hand first. - 6
Run a test cycle and verify tension
Run a short cycle on air or low heat. Observe drum rotation, belt tension, and motor response. If the belt slips or the drum stalls, recheck belt routing and tension; adjust as needed before a full load.
Tip: If the lint screen or vent is blocked, clear it before testing to prevent overheating.
Common Questions
Do I need to unplug the dryer to replace the belt?
Yes. Always unplug or switch off the circuit before starting any dryer repair. This protects you from electric shock and prevents the drum from turning unexpectedly during disassembly.
Always unplug the dryer before you start. It prevents shocks and accidental drum movement as you work.
Can I replace the belt without removing the drum?
Some GE models allow belt replacement without full drum removal, but many require at least partial access to the belt path. Check your model’s manual to confirm. If in doubt, remove the drum following model-specific steps to ensure correct belt routing.
Most GE models need some drum access to get the belt routed properly. Always check your manual before starting.
How do I know what belt size to buy?
Verify the belt length and groove profile specified for your GE model in the manual or on the old belt. Do not guess—an incorrect belt can slip or fail prematurely.
Check your model’s manual or the old belt for the correct size.
Is belt replacement dangerous for gas dryers?
The belt replacement process is similar for gas and electric models, but gas dryers require caution around gas lines and venting. If you smell gas or suspect a leak, stop and contact a professional immediately.
Gas dryer belt replacement is similar, but treat any gas concerns as urgent—they may require a pro.
How long does a GE dryer belt typically last?
Belt life varies with usage, load sizes, and maintenance. Regular inspection and vent cleaning can extend belt life, but replacement is a normal wear item over years of operation.
Belt life depends on use and maintenance; inspect periodically.
What other components should I inspect during belt replacement?
Check the idler pulley, motor pulley, and drum rollers for wear. Worn components can cause premature belt failure even with a new belt. Replace worn parts as a set if necessary.
Inspect pulleys and rollers; replace worn parts to maximize belt life.
Watch Video
Key Points
- Identify belt wear early to avoid drive failures.
- Follow the exact belt routing for your GE model.
- Test with care and verify safe operation before full loads.
- Maintain lint filters and vents to protect motor and belt life.
