How to Put a Dryer Back Together: A Practical DIY Guide
Learn how to safely put a dryer back together with our step-by-step guide. This practical DIY resource covers tools, safety checks, assembly tips, and testing to restore performance.
Learn how to put a dryer back together safely with a clear, step-by-step approach. This guide covers disassembly basics, essential tools, correct belt placement, and wiring checks to prevent hazards. By following the steps, you’ll rebuild the dryer's internal assembly confidently, reducing the risk of fire and improving performance. It is suitable for general DIYers with basic hand tools and a clear safety plan.
Why reassembling a dryer correctly matters\n\nReassembling a dryer is more than just getting the screws back in place. A correct reassembly ensures safe operation, proper airflow, and reliable drying performance. If parts are misaligned, it can cause belt wear, noisy operation, or heat buildup that risks a fire. Easy DryVent emphasizes safety and documentation as the foundation of any successful repair. Start by planning the sequence, labeling components, and verifying you have the right parts before you begin. Small mistakes in drum alignment or belt routing can propagate into larger issues after you power the unit, so take time to double-check each connection. This section highlights key risk factors, such as belt tension and pulley condition, and explains how each decision during reassembly affects performance, reliability, and safety. Following a deliberate process reduces the chance of costly mistakes and the need for rework later.
Essential tools and safety precautions\n\nA well-equipped workspace makes reassembly smoother and safer. Begin with personal protective equipment: safety glasses and gloves. Choose a clear, well-lit area with a stable surface and a way to keep fasteners organized. The list below includes essential tools and why you need them:\n- Power drill with screwdriver bits: for fasteners and small screws\n- Nut drivers and wrenches: for belt pulleys and frame bolts\n- Multimeter: to verify electrical connections and continuity\n- Replacement drum belt and idler pulley: if wear is found\n- Labeling supplies: tape, markers, and small containers to track screws\n- Good lighting and a magnetic tray: to prevent dropped parts\nHaving the right tools on hand reduces the risk of losing fasteners and helps you work more efficiently. Remember to unplug the dryer and discharge any stored energy before starting work.
Understanding the dryer's internal components\n\nA typical electric dryer comprises the drum, belt, idler pulley, tensioner, motor, blower wheel, thermal fuse, and control wiring. The drum rotates on wheels as the belt transfers motion from the motor. The belt path must be clean and properly aligned to prevent belt slippage, which can cause overheating. The thermal fuse protects against overheating and should be replaced if it has blown. Wires and connectors should be intact and properly seated; damaged insulation is a sign to pause and inspect further. A good understanding of the components helps you recognize wear patterns during inspection and plan for replacement parts before you start reassembly. If you’re unsure about any component’s condition, consult the manual or a professional for guidance.
Pre-disassembly planning and labeling\n\nPlanning reduces guesswork during reassembly. Before touching anything, take photos of the assembled state from multiple angles. Use labels on wires and screws to note location and orientation. Create a simple diagram showing how major parts connect, especially around the motor, belt path, and drum support. Keep components organized in clearly labeled bags or containers so you can locate them during reassembly. This forethought prevents misplacements that could cause functional issues or safety hazards later.
Common mistakes and how to avoid them\n\nCommon mistakes include misrouting the belt, over-tightening fasteners, and misplacing the drum or pulley. Avoid these by following the diagram and labeling. Do not reuse worn belts or damaged rollers; even small defects can cause performance problems. Overlooking vent obstructions or lint buildup is a safety risk, so inspect the vent system during reassembly. Finally, never test with a high-heat cycle until you are confident all electrical connections are secure and the housing is properly closed.
Safety checks after reassembly\n\nBefore plugging in and running the dryer, perform a final safety check. Ensure the drum spins freely and the belt tracks correctly without side-to-side movement. Reconnect all electrical connectors and verify the door switch and thermal fuse are connected correctly. Run a short, no-heat test cycle to listen for unusual noises and verify airflow through the vent path. Inspect the exhaust vent for blockages and ensure the lint trap is clean. Once confident, run a full test cycle and monitor temperatures to ensure safe operation.
Tools & Materials
- Power drill with screwdriver bits(PH2 bit, 2-3 inch shaft)
- Set of nut drivers(Include 1/4 inch and 5/16 inch sizes)
- Adjustable wrench(8-10 inch preferred)
- Multimeter(For continuity and voltage checks)
- Replacement drum belt(Non-stretch belt sized for your drum)
- Replacement idler pulley(Optional if worn)
- Labeling supplies(Tape, markers, small containers)
- Screw organizers(Magnetic trays or compartments)
- Wire labels or tape(Label connectors and harnesses)
- Work gloves and safety glasses(Personal protective equipment)

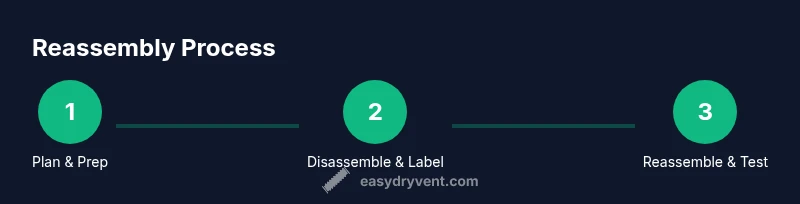

Steps
Estimated time: 60-90 minutes
- 1
Power down and prepare the workspace
Unplug the dryer from the outlet and move it to a clear, well-lit work area. Remove any loose lint and tidy the surface to reduce dust and slip hazards. Confirm there is no power at the plug with a non-contact tester before touching any internal parts.
Tip: Double-check power is off using a non-contact tester before touching internal components. - 2
Remove access panels and expose the drum
Remove the top panel and any rear panels to access the drum interior. Support the drum so it doesn't fall when panels are removed. Keep track of screws by location, using labeled bags or a tray.
Tip: Use a magnetic tray or labeled bags to prevent losing small fasteners. - 3
Label and photograph wiring connections
Take clear photos of all wiring connections from multiple angles. Label each connector with a reference ID and note its orientation. This step saves time and reduces the risk of miswiring during reassembly.
Tip: Color-code labels for quick reference during reassembly. - 4
Inspect major components for wear
Check the drum belt for cracks or fraying and inspect drum rollers and the idler pulley for wear. Look for melted insulation or burnt smells in the wiring. Document any worn parts that will need replacement.
Tip: Replace worn components rather than reusing them to avoid future failures. - 5
Replace worn parts as needed
Install a new drum belt and any worn rollers or pulleys. Ensure replacement parts align with the drum model and fit within the belt path. Do not mix parts from different models.
Tip: Confirm belt seating around pulleys before proceeding to reassembly. - 6
Reassemble the drum and belt path
Position the drum back into the cabinet, route the belt around the motor pulley and idler, and ensure the belt sits evenly in the drum pulley groove. Check for smooth, unobstructed movement when turning the drum manually.
Tip: Make sure the belt is not twisted and seats evenly on all pulleys. - 7
Reconnect electrical connections and sensors
Reattach wiring harnesses to their corresponding terminals using the reference photos. Verify that door switch and thermal fuse connections are secure and correctly oriented. Close any access panels as you go.
Tip: Double-check all connections with the photos you took earlier. - 8
Perform a no-heat test run
Plug the dryer back in and run a short test cycle without clothes on a cool setting to verify belt operation and drum rotation. Listen for abnormal noises and observe airflow and venting. If everything runs smoothly, proceed to a full test cycle.
Tip: Watch for belt tracking and confirm air is flowing through the vent. - 9
Final safety checks and cleanup
Inspect the exterior housing and panels for gaps or loose screws. Confirm vent path is clear and lint screen is in place. Document any replacements and store tools properly for future maintenance.
Tip: Leave the work area cleaner than you found it to reduce fire risk.
Common Questions
Is it safe to reassemble a dryer on my own?
Yes, with proper safety protocols: unplug power, discharge capacitors when present, and follow the wiring diagram and manufacturer guidance. Use the correct replacement parts. If in doubt, consult a professional.
Yes, but only if you follow safety steps and use proper parts.
What are signs I should replace internal components during reassembly?
Look for a frayed belt, worn drum rollers, melted wires, or a failed thermal fuse. If components show wear, replace them rather than forcing a reassembly.
Watch for worn parts; replace them as needed.
Do I need special tools to reassemble a dryer?
Most tasks require basic hand tools; a multimeter helps test wiring. Keep a clean workspace and refer to the wiring diagram.
Only basic tools, plus a multimeter if you’re testing wiring.
Will reassembly void my warranty?
DIY reassembly can affect warranty coverage. Check the manufacturer’s policy and keep records of replacements and labor.
Check warranty terms; DIY can affect coverage.
What safety checks should I perform after reassembly?
Ensure the vent path is clear, run a no-heat test cycle, and listen for unusual noises. Recheck connections before regular use.
Test safety path and run a no-heat test first.
Watch Video
Key Points
- Plan before you start.
- Label every part as you disassemble.
- Test belt and drum alignment during reassembly.
- Check venting and perform a no-heat test before use.
