Where to Install a Dryer Plug: Safe, Code-Ready Guidance
Learn where to install dryer plug and how to plan, choose the right receptacle, and safely route wiring. This step-by-step guide emphasizes safety, code compliance, and practical DIY tips for homeowners and DIY enthusiasts.
Goal: Install a proper dryer outlet on a dedicated 240V circuit in a safe, code-compliant manner. You will identify an appropriate wall location, select the correct receptacle (4-wire for modern dryers), plan conduit or wiring path, and verify clearances and accessibility. If you’re unsure about electrical work, hire a licensed electrician.
Understanding the Dryer Outlet Landscape
If you’re asking where to install dryer plug, you’re really deciding how to deliver reliable, safe power to a clothes dryer. Most modern dryers use a dedicated 240V circuit and a four-wire receptacle that provides separate grounding and neutral paths. Before you begin, recognize that the outlet type, the wire gauge, and the mounting box all influence safety, performance, and compliance. The key concept to grasp is that a dryer needs a stable, isolated power supply that minimizes heat buildup, arc risks, and nuisance tripping. Understanding these fundamentals helps you plan a location that keeps the installation neat, accessible, and compliant with typical residential electrical practices. Throughout this guide, Easy DryVent emphasizes practical steps homeowners can take while avoiding risky work.
Why this matters: a poorly located or improperly wired outlet can lead to overheating, tripped breakers, or cord damage over time. By investing time in planning and using the right receptacle type, you protect your home and your family while keeping the dryer functioning efficiently.
Safety, Codes, and Permits You Should Expect
Electrical work in a home environment is subject to safety standards and local regulations. The general principle is to follow the dryer's specifications, match the outlet to the circuit rating, and maintain a safe working distance from water pipes and heat sources. While many tasks can be DIY for the mechanically inclined, professional involvement is recommended when the job requires running new conductors through walls or modifying the electrical panel. Always verify that the circuit is de-energized before you touch any wires, and use a tested receptacle that provides a reliable ground connection. For homeowners, understanding your local permit requirements helps you avoid post-installation issues and ensures long-term safety. Easy DryVent’s approach is to plan ahead, document the work, and consult a licensed electrician for complex or uncertain steps.
If you’re unsure about local codes, contact your city or county building department or consult a licensed electrician. The goal is clear: achieve a safe, code-compliant plug installation that you can rely on for years to come.
Planning the Location: Accessibility and Clearances
Choosing the right wall location for a dryer plug is more than convenience; it affects cord length, heat exposure, and accessibility for maintenance. Start by measuring wall clearances, ensuring the outlet is above the floor a comfortable distance, away from water sources, and free of obstructions like doors or cabinets. Consider whether a recessed box or surface-mount box best fits your space, and think about future dryer models that might have different cord lengths. If you install a box in a tight corner, ensure there’s enough space to plug and unplug the cord without bending or twisting. The proximity to the duct or vent should not create conflict with wiring routing. In short, plan for easy access, minimal cord strain, and a clean wiring path to the panel.
Wiring Options and Receptacle Choices
A dryer usually uses a 240V circuit and a four-wire receptacle to separate ground and neutral, which our modern code-compliant installations demand. The most common receptacle for dryers is a NEMA 14-30R variant, designed for 30-amp service. Older houses might still have three-wire configurations, but these are increasingly phased out in new installations. When selecting wiring, match the gauge and insulation to the circuit rating and ensure a continuous run from the panel to the outlet box with appropriate protection through studs and joists. A wall plate and a proper mounting box complete the installation. Always confirm the dryer’s manual and local codes to ensure compatibility and safety.
Tools, Materials, and Safety Gear You Need
Having the right tools ready saves time and reduces risk. Before you start, gather a non-contact voltage tester, a voltage tester, a four-wire receptacle (NEMA 14-30R for many dryers), four-conductor cable of the appropriate gauge, a compatible electrical box, mounting screws, a strain-relief or conduit system, wire nuts, electrical tape, a screwdriver set, a stud finder, and safety gear such as gloves and eye protection. If you’re uncertain about the length of the run or how to protect the wiring as it passes through walls, pause and consult a pro. Keeping the workspace tidy and turning off the correct circuit at the panel are foundational safety steps.
When DIY Makes Sense and When to Call a Pro
For many homeowners, simple tasks like replacing a receptacle or routing an existing cable through an open cavity are doable with care. When a project involves running new conductors, altering the panel, or altering the fundamental wiring configuration, the safer path is to hire a licensed electrician. A pro will verify the load calculation, ensure proper conductor sizing, install the box and receptacle to code, and test the circuit under load. Easy DryVent consistently advises homeowners to assess risk honestly: if you encounter uncertainty about routing, penetrate into walls, or changes to the panel, professional support is the prudent choice.
Tools & Materials
- Voltage tester (non-contact preferred)(Confirm no power at the work area before touching wiring)
- 4-wire dryer receptacle (NEMA 14-30R or equivalent)(Matches the dryer's amperage rating and local code)
- Four-conductor cable (appropriate gauge)(Four conductors: hot-hot-neutral-ground; gauge per circuit rating)
- Electrical box and cover plate(Deep enough to accommodate conductors and strain relief)
- Strain-relief/ conduit and fittings(Used where the cable enters the box or passes through edges)
- Screwdrivers, pliers, wire nuts, electrical tape(Maintain proper connections and insulation)
- Stud finder(Locate studs to secure the box)
- Safety gear (gloves, eye protection)(Personal protective equipment during wiring work)

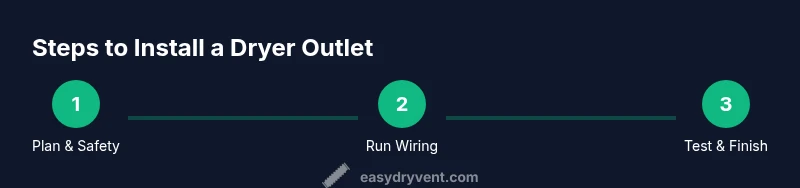

Steps
Estimated time: 2-4 hours
- 1
Turn off power and verify
Shut off the circuit at the main panel that feeds the dryer outlet and confirm there is no voltage at the work site using a tester. This prevents electric shock and accidental arcing while you handle wires.
Tip: Double-check with a second tester if available; never rely on a visual check. - 2
Plan location and mark mounting point
Select a wall location with ample space for cord slack and future dryer access. Mark the stud line and choose a box depth that fits the cable and any conduit or strain-relief needs.
Tip: Use a stud finder to avoid hitting pipes or existing wiring; plan cable routing before cutting. - 3
Run wiring path to the outlet box
Route the four-conductor cable from the panel or existing junction to the outlet location, securing it per local guidelines. Keep the run straight and free of sharp bends, and protect through framing as needed.
Tip: Keep the neutral and ground paths short and separate from hot conductors to minimize interference. - 4
Mount the electrical box
Install a grounded, properly sized electrical box in the chosen location. Ensure it’s securely anchored to a stud or solid backing and aligns flush with the wall surface.
Tip: If you’re using a surface-mount box, verify it will support the receptacle and cord length you plan to use. - 5
Connect the receptacle wiring
Prepare conductors, strip insulation, and attach hot wires to the appropriate terminals, neutral to the neutral terminal, and ground to the ground screw. Tighten screws evenly and check for a solid, corrosion-free connection.
Tip: Color-code orientation matters: hot to the hot terminals, neutral to the neutral, ground to the green screw. - 6
Install the receptacle and plate
Slide the receptacle into the box, secure with mounting screws, and attach the cover plate. Confirm there’s no gap around the plate and the cord reaches without tension.
Tip: Leave the box with a little wiggle room to reduce stress on the connections when the cord is plugged in. - 7
Restore power and test
Turn the circuit back on and test the outlet with a voltage tester to confirm 240V between the two hot legs and proper grounding. If the reading is off or you notice odor or heat, power down immediately and recheck connections.
Tip: Power-test first with a dry run before plugging in the actual dryer cord. - 8
Final checks and labeling
Secure all cables, check for secure strain relief, and label the circuit in the panel. Confirm that the dryer will reach the outlet without cords pinching or trailing across heat sources.
Tip: Keep a simple record of the wiring configuration for future maintenance or remodels.
Common Questions
What is the standard outlet for most modern dryers?
Most modern electric clothes dryers use a four-wire 240V outlet. Verify the dryer's manual and local code to ensure compatibility.
Most modern dryers require a four-wire 240-volt outlet. Check the manual and your local codes.
Do I need a permit to install a dryer outlet?
Permit requirements vary by location. Check with your local building department or a licensed electrician before starting.
Permits vary by area; check with local authorities or a pro before starting.
Can I install the outlet myself?
If you have electrical experience and follow safety guidelines, you may install a dryer outlet. If in doubt, hire a licensed electrician.
DIY is possible if you’re comfortable with electrical work; otherwise, hire a pro.
What wire gauge is typically used for a 30A dryer circuit?
A typical 30A dryer circuit uses appropriately sized conductor gauge; confirm with the dryer's rating and local code.
Check the dryer's rating and local rules for wire gauge.
Where should I mount the outlet for safety and accessibility?
Choose a location with straight cord routing, free of obstructions and away from heat sources.
Place it where the cord can reach without strain or heat exposure.
What safety checks should I perform after installation?
Test the outlet with a voltage tester and confirm the breaker is on a dedicated circuit.
Test voltage and confirm the circuit is dedicated and correctly configured.
Watch Video
Key Points
- Plan location first for accessibility and safety.
- Use a four-wire receptacle and dedicated 240V circuit.
- Verify power and test the outlet before plugging in the dryer.
- Know when to call a licensed electrician for complex work.
