Why the Dryer Belt Location Matters
The dryer belt is the circular rubber loop that drives the drum, allowing your clothes to tumble as heat is applied. Knowing where the belt is located helps you diagnose common symptoms—like no drum rotation or unusual noises—without tearing the appliance apart blindly. Most residential dry ers use a belt routed around a motor pulley and an idler pulley; the belt path can vary by model, size, and era. If you’re wondering, in practice many homeowners ask, "where is dryer belt located?" The answer: it’s usually behind a rear access panel or beneath a kick panel at the back or front, depending on the design. Easy DryVent’s guidance emphasizes mapping the belt path before you disassemble, so you don’t lose track of components. In addition to the belt itself, you’ll inspect pulleys and drum rollers for wear, which helps you plan maintenance rather than waiting for complete belt failure.
Why care about the belt location? It determines how you access replacement parts, how you route the new belt, and how you test the drum after reassembly. A misrouted belt can slip, wear prematurely, or cause the motor to work harder, wasting energy and shortening dryer life. Keeping a mental note of your model’s belt path also helps when you consult a technician or search model-specific manuals for safe disassembly steps.
As you read, remember that belt routing is not universal; always refer to your dryer’s model number and manual for precise diagrams. The goal is to gain confidence in locating the path so you can perform preventative maintenance or a renewal if needed.
noteToReadersHashTagAccessOnlyForInternalUseStoreInCRMExplainThisBlockForSEOOnlyPleaseOKForNowOriginalContentGun
Tools & Materials
- Replacement dryer belt(Choose the belt width and length to match your model; check the model number on the nameplate.)
- Screwdriver set (Phillips and flat-head)(Required to remove access panels and screws.)
- Socket wrench or nut driver(Needed for rear panel bolts and pulleys.)
- Flashlight or headlamp(Good lighting helps identify routing and pulley placement.)
- Work gloves(Protect hands from sharp edges during disassembly.)
- Camera or smartphone(Take photos of belt routing before removal.)
- Manual or model-specific diagram(Helpful for identifying exact path and parts.)

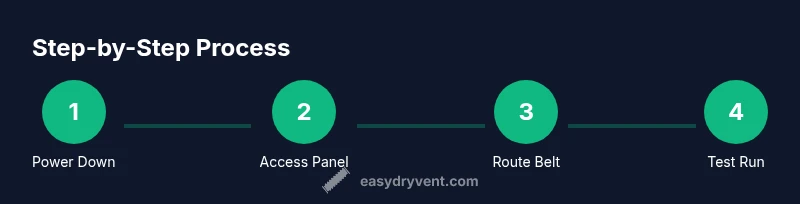

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Unplug the dryer and turn off any nearby circuit breakers if needed. This eliminates the risk of shock while you work near electrical connections. Confirm the unit is completely de-energized by testing that the drum no longer moves when nudged gently.
Tip: Always double-check the power supply; a live circuit is the fastest path to injury. - 2
Move the dryer for access
Gently pull the dryer away from the wall to expose the rear or bottom access panels. Keep the vent hose connected if you must move the unit, but avoid yanking it loose. This step creates space to remove panels safely.
Tip: Use a helper if the appliance is heavy to prevent tipping or damage. - 3
Remove the rear panel
Using the appropriate screwdriver or socket, remove the screws securing the rear access panel. Set the panel aside and keep track of screws so you can reassemble later. You should now see the belt path and pulleys.
Tip: Keep screws organized in a labeled container. - 4
Identify the belt path
Trace the belt as it runs around the motor pulley and idler pulley or tensioner. Note its orientation—how it enters and leaves each pulley—and take a photo for reference.
Tip: If you’re unsure, pause and compare to the diagram in your manual before removing the belt. - 5
Check for wear or damage
Inspect the belt for cracks, glazing, or fraying. If the belt shows significant wear or is missing segments, it should be replaced rather than reused. Also check pulleys for glazing or cracks that could cause belt wear.
Tip: Even a sound belt can wear quickly if pulleys are rough or misaligned. - 6
Release tension and remove belt
Loosen the tensioner or release the belt from the pulleys, then carefully slide the belt away from the drum and motor. Keep track of the belt’s routing so you can mirror it for the new belt.
Tip: Do not twist or stretch the pulley wheels; preserve the belt’s original shape. - 7
Install the new belt
Position the new belt along the same route you noted earlier, ensuring it sits flat on each pulley and around the drum. Gently rotate the drum by hand to verify the belt sits correctly and moves smoothly.
Tip: If the belt doesn’t seat, double-check the routing against your photo or diagram. - 8
Reassemble the dryer
Reattach the rear panel and reconnect any vent hoses you may have moved. Return the dryer to its original position and ensure clearance from walls for airflow.
Tip: Tighten all screws evenly to avoid panel warping. - 9
Test the dryer before final setup
Plug the dryer back in, restore power, and run a brief air-dry cycle to check for proper drum rotation and belt tracking. Listen for unusual noises or slippage.
Tip: Watch the belt closely during the first test run for any misrouting. - 10
Document maintenance and cleanup
Store the old belt for reference if needed and record the date of replacement in your maintenance log. Clean the lint trap and vent connections to maintain safe airflow.
Tip: Keep a small maintenance kit handy for future DIY tasks.
Common Questions
What are common signs that the dryer belt is failing?
Common signs include the drum not turning smoothly, unusual thumping or squealing noises, and clothes not drying evenly. If the drum spins intermittently or the belt shows visible wear, plan a replacement.
Common signs are the drum not turning, noises, or uneven drying. If you see wear, replace the belt.
Can I replace the belt myself, or should I hire a pro?
Many homeowners can replace a dryer belt with basic hand tools by following model-specific instructions. If you are uncomfortable with electrical panels or interior components, consider professional service.
Yes, many people replace it themselves if you follow your model’s steps.
Do all dryers use the same belt size?
No. Belt size and width vary by model and drum size. Always check your dryer’s model number and the replacement belt part number before purchasing.
Belt size isn’t universal; check your model number before buying.
Is it dangerous to operate a dryer with a broken belt?
Running a dryer with a broken belt can cause the drum not to turn and can overheat components, posing a fire risk. Stop use and repair promptly.
Yes, it’s risky—stop using the dryer and fix it soon.
How often should I inspect the belt?
Inspect the belt during routine maintenance, especially if you notice noises, slow drying, or heat fluctuations. Check annually or after major service events.
Do a belt check during annual maintenance or after noticeable issues.
Should I replace drum rollers or pulleys when replacing the belt?
If you see worn drum rollers, cracked pulleys, or roughness, replace them along with the belt to prevent future failures. This saves time and reduces call-backs.
If rollers or pulleys look worn, replace them with the belt.
