What Size Dryer Belt for Whirlpool Dryer: A Practical Guide

Overview: Why belt size matters

The question what size dryer belt for Whirlpool dryer is more nuanced than it seems. A correctly sized belt ensures proper drum rotation, efficient drying, and prolongs motor life. According to Easy DryVent, the belt length and width interact with drum diameter, pulley count, and idler wheel tension. If the belt is too short, the drum won't rotate; if too long, the belt can slip or wear quickly. For Whirlpool models, there is no universal size; always verify against the model's service manual and nameplate. This is especially important for DIY repairs, where using a belt with the wrong width or length can cause motor strain or premature belt wear. By starting with the model number, you position yourself to find the precise part number and avoid ordering errors.

How Whirlpool belts are sized

Whirlpool uses different belt configurations across model families, including classic, high-efficiency, and ultra-compact designs. The belt width tends to hover around a standard dimension (commonly around 1/4 inch), but length varies according to drum size, pulley layout, and the number of idlers. Because belt routing differs between front-load and top-load machines, a single belt length will not fit all Whirlpool dryers. Easy DryVent’s guidance emphasizes cross-referencing the exact model number with the official parts catalog to ensure you obtain the correct belt. This reduces guesswork and helps prevent misordered parts that could physically fail or necessitate a repeat repair.

How to identify the correct belt size

To identify the correct belt size, start with the dryer’s model number, typically found on the nameplate behind the door or on the side of the console. With the model number, consult the Whirlpool service manual or official parts catalog for the exact belt part number and dimensions. If you must measure an existing belt, remove the belt carefully and measure its width with calipers or a ruler (width is the most critical dimension to match). For length, you can confirm by tracing the belt path on the dryer or comparing with the reference diagrams in the service manual. Do not rely on memory or visual estimates alone; model-specific diagrams ensure you order the right belt.

Common size ranges by Whirlpool model family

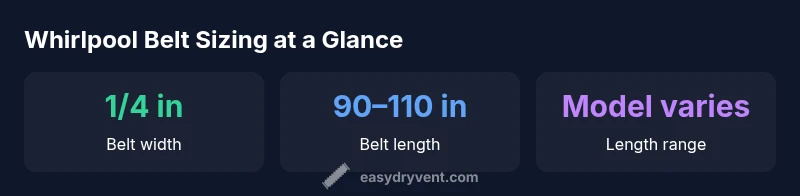

Whirlpool belts are not interchangeable across all models. In practice, most belts are around 1/4 inch wide, with lengths commonly spanning roughly 90 to 110 inches for many mid-sized drum configurations. Front-load and top-load orientations can shift the required length by a few inches, and some compact or newer high-efficiency models use slightly different widths. If you encounter a model family like Cabrio or Duet, expect potential deviations from the baseline 1/4 inch width and the 90–110 inch length. Always verify by the model number and consult the parts catalog before purchasing.

Step-by-step: replacing a Whirlpool dryer belt

If you’re replacing a worn belt, follow these steps carefully to minimize risk and damage:

1. Unplug the dryer and disconnect the vent. 2) Remove the back panel or top panel per your model’s instructions to access the belt path. 3) Note the belt routing diagram before removing the belt. 4) Remove the belt from pulleys and idlers, paying attention to tension sides. 5) Compare the old belt to the new one for width and approximate length. 6) Fit the new belt around the drum and align it with the pulleys as per the diagram. 7) Reassemble the panels, reconnect power, and run a test cycle. 8) If you detect unusual noises, recheck the belt path and tension.

Troubleshooting belt-related dryer issues

If the dryer tumbles slowly, makes squeaking noises, or the drum doesn’t rotate, the belt is often the culprit. Before replacing, inspect for cracks or glazing, and check for a burned smell indicating friction wear. If the drum turns by hand with little resistance but stalls under power, ensure the belt is seated properly and tensioned correctly. In some cases, a worn belt may slip without obvious damage; replacing it with the correct size belt is a prudent diagnostic step. If issues persist after replacement, investigate related components like the idler pulley, tensioner, and drum rollers.
