How to Change a Belt on a Whirlpool Dryer
Learn to safely replace a Whirlpool dryer's belt with clear, step-by-step instructions, essential tools, safety tips, and maintenance guidance from Easy DryVent.
According to Easy DryVent, you can successfully replace a Whirlpool dryer's belt by disconnecting power, gaining access to the belt area, and installing a correctly sized replacement while routing it precisely around the drum and pulleys. Gather common hand tools, follow the step‑by‑step process, and test the unit before resuming normal use. This task requires patience and careful belt routing to avoid misalignment.
Why replacing the belt matters
A worn or broken belt is a common cause of poor drying performance and can lead to damage to the motor or drum. In Whirlpool dryers, the belt drives the drum by connecting the motor pulley to the drum pulley. Over time, heat, lint, and regular wear cause cracks or stretching, which reduces tension and can slip. If you notice clothes taking longer than usual to dry, a burning smell, a loud thrum, or the drum not turning, the belt is often the culprit. Replacing the belt promptly can restore efficiency, prevent motor strain, and stop small issues from becoming bigger problems. Easy DryVent notes that a proactive belt replacement strategy saves time, energy, and cost in the long run.
Safety first when working on a Whirlpool dryer
Safety is non-negotiable when performing a belt replacement. Always unplug the dryer before you touch any internal components. If the unit is a gas model, shut off the gas supply at the valve and keep flames, sparks, and liquids away from the work area. Wear protective gloves and eye protection, and keep long hair and loose clothing secured. Work in a well-ventilated area and avoid leaning on the electrical cord. Lint buildup can burn; clean the surrounding area as you go, and never operate the machine with panels removed unless you are actively guiding a belt replacement. According to Easy DryVent, following proper safety steps prevents injuries and reduces the risk of electrical shock or fire.
Tools and materials you'll need
Before you start, confirm you have the correct belt for your Whirlpool model. A few common tools make the job easier: a screwdriver (Phillips and flat-head), a socket or nut driver, needle-nose pliers, a flashlight or headlamp, a magnetic tray for small screws, and of course the replacement belt. A copy of your dryer’s user manual or Whirlpool service guide is helpful to verify routing. Optional but handy items include a camera or notepad to document belt routing and a soft cloth to clean lint from pulleys. Having a clean, organized workspace reduces mistakes and speeds up the process.
Identify the issue: is a belt worn or broken?
Not all belt problems are obvious from the outside. Common symptoms include longer drying times, a belt that slips and causes the drum to stall, or a loud whirring or thudding noise during operation. A tire-like crack or frayed edge on the belt is a clear sign it needs replacement. If the drum spins freely when unplugged and you can see significant slack or fraying, plan for a belt change. Easy DryVent notes that diagnosing the belt early prevents secondary damage to the motor or pulleys.

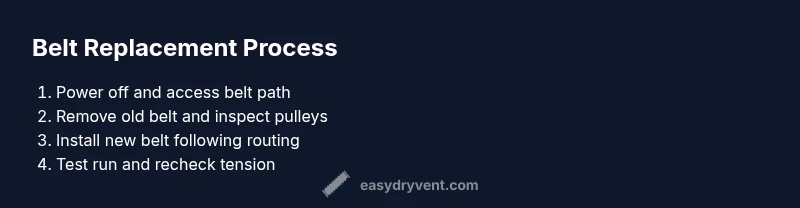

Step-by-step belt replacement
This section provides a practical sequence you can follow, with the understanding that model variations exist. Step 1: Disconnect power and access the belt area. Step 2: Remove the old belt from the drum and tension pulley. Step 3: Compare the new belt to the old one to confirm size and type. Step 4: Route the new belt around the drum first, then align it with the pulleys as per routing diagram. Step 5: Reassemble access panels and secure fasteners. Step 6: Plug in the unit and run a short test without a load to validate spinning. Step 7: If necessary, adjust tension and re-test. Step 8: Clean up and document the replacement for future reference. Pro tips: photograph the routing before removal, keep screws organized, and never force a belt into an incorrect groove. These steps, when followed, minimize the risk of misrouting and reduced efficiency.
Reassembling and testing the dryer
With the new belt seated, begin reassembling the front panel or access cover and fasten screws securely. Place the dryer back in its original position, plug it back in, and run a dry cycle with no clothes to listen for abnormal noises and confirm the drum spins smoothly. If you hear grinding, rattling, or the drum stalls, recheck pulley alignment and belt seating. Easy DryVent recommends a cautious approach: verify belt tension visually and by feel, then perform a brief test run to confirm proper operation before loading laundry.
Maintenance tips to extend belt life
Proactive maintenance can dramatically extend belt life. Regularly inspect the belt for wear, cracks, or glazing, especially after heavy loads or long dry cycles. Clean lint from the vent and around the drum area to prevent abrasive particles from accelerating belt wear. Keep the drum turning freely with light finger pressure to feel for stiffness or resistance, and replace worn pulleys if they exhibit wobble. Use the correct belt type specified for your Whirlpool model and keep a spare belt on hand for emergencies. Easy DryVent emphasizes that consistent maintenance reduces unexpected breakdowns and enhances energy efficiency.
Common mistakes to avoid
Avoid rushing through the process. Common errors include misrouting the belt, overtightening, or neglecting to secure all screws, which can lead to belt slip or panel damage. Do not run the dryer with panels removed or with a loose belt; this can cause motor wear and dislodgment of components. Never substitute a belt of the wrong size or rib count, as incorrect routing creates friction and premature failure. Mindfully following the routing diagram and maintaining proper tension guards against costly mistakes.
When to call a professional
If you are unsure about the belt type, cannot access the belt area safely, or the drum still does not operate correctly after replacement, it is wise to contact a qualified appliance technician. A professional can verify pulleys, bearings, and motor mounts for wear that could affect belt performance. Easy DryVent notes that complex models or unusual noises after replacement warrant expert evaluation to prevent further damage and ensure a safe, reliable dryer operation.
Tools & Materials
- Screwdriver set (Phillips and flat-head)(Assorted sizes; Phillips #2 is common)
- Socket or nut driver set(For access panel screws)
- Needle-nose pliers(Grip belts and guides without slipping)
- Replacement belt compatible with Whirlpool models(Check model number; match rib count and belt length)
- Flashlight or headlamp(Bright, focused lighting for visibility)
- Magnetic parts tray(Keep screws organized during disassembly)
- Work gloves(Protect hands from sharp edges)
- User manual or Whirlpool service guide(Verify routing diagram for your model)
Steps
Estimated time: 60-90 minutes
- 1
Disconnect power and access the belt area
Unplug the dryer from the wall outlet and, if possible, move it away from the wall to access the back or front access panel. Remove the screws securing the panel to expose the belt path. Use a flashlight to clearly see the drum and pulleys.
Tip: Use a magnetic tray to keep screws from rolling away. - 2
Remove the old belt from the drum and pulleys
Carefully note how the belt sits on the drum and pulleys. If the belt is frayed or broken, remove it completely and inspect the drum and pulleys for wear or damage before installing the new belt.
Tip: Take a quick photo of routing before removing the belt. - 3
Compare and prepare the replacement belt
Place the new belt next to the old one to confirm length and rib count. If your model uses a center idler, ensure the belt sits correctly on the idler wheel and motor pulley.
Tip: Do not stretch or twist the belt beyond its natural loop. - 4
Install the new belt around the drum first
Slip the belt around the drum groove, ensuring the rib side faces the drum where applicable. Rotate the drum slightly by hand to guide the belt onto the pulley as you seat it.
Tip: A small amount of hand pressure helps seat the belt without slipping. - 5
Route belt around the pulleys and tensioner
Guide the belt along the specified routing path, around the motor pulley and any tensioner or idler wheel as designed for your Whirlpool model. Double-check that the belt sits in the groove on every component.
Tip: If you feel resistance, back off and recheck the routing to avoid pinching. - 6
Reassemble the panel and secure screws
Reattach the access panel and fasten screws securely. Ensure the wiring harnesses are clear of the belt path and all connections are tight.
Tip: Tighten screws in a cross pattern to avoid panel distortion. - 7
Test the belt without a load
Plug the dryer back in and run a short, empty dry cycle to verify that the drum spins smoothly and the belt stays in place. Listen for abnormal noises indicating misrouting or misalignment.
Tip: Stand back at arm's length during the test to observe belt tracking. - 8
Inspect and document
Inspect the belt tension visually and by feel. If you notice looseness or noise, re-open the access panel and adjust as needed. Note the belt type and replacement date for future maintenance.
Tip: Record model number, belt type, and replacement date for future reference.
Common Questions
Can I replace a Whirlpool dryer's belt myself?
Yes. With the right belt, proper routing, and safety precautions, most homeowners can replace a Whirlpool dryer's belt. Always unplug the unit and follow model-specific routing diagrams.
Yes, you can replace the belt yourself if you follow the safety steps and routing for your model.
What belt size do I need for a Whirlpool dryer?
Check your dryer's model number to determine rib count and length. Belts vary between four-rib and six-rib configurations, and the length must match the drum and pulley arrangement precisely.
Check the model number to find the correct belt type and length.
How long does it take to replace a belt?
Most DIY replacements take about 45 to 90 minutes depending on model access and tool comfort. Allocate extra time if you need to remove the front panel or wires.
Most people finish in under an hour, depending on access.
What are signs of belt failure besides noise?
Slow drying, clothes still damp after cycles, or the drum not turning can indicate a worn or broken belt. A visible crack or frayed edge confirms replacement is needed.
If drying is slow or the drum won't spin, check the belt.
Do I need special tools?
Most belts can be installed with basic hand tools. A screwdriver, a socket set, and pliers are typically sufficient, plus a flashlight for visibility.
Mostly basic tools are needed.
Can a bad belt cause a fire?
A frayed or slipping belt can overheat motors or pulleys over time, which increases risk. Do not operate the dryer with a suspected belt issue.
Over time, a bad belt can cause overheating and risk,
Watch Video
Key Points
- Power off before starting any work on the dryer.
- Use the correct Whirlpool belt and routing for your model.
- Test with a short cycle to ensure proper operation.
- Inspect pulleys and idler for wear during replacement.
- Document replacement details for future maintenance.
