Dryer Belt Configuration: A Practical DIY Guide Today
Learn how to identify, configure, and safely replace a dryer belt. This Easy DryVent guide covers belt types, routing, tension, and routine maintenance for safer, more efficient drying.
You will learn how to identify, configure, and safely replace a dryer belt, plus how to test the drum’s rotation after reassembly. This quick guide introduces belt types, routing, and basic tension concepts, then points you to a detailed step-by-step workflow. By the end, you’ll be able to diagnose common belt issues and perform a safe, effective belt configuration.
Understanding the Dryer Belt Configuration
For homeowners, the dryer belt configuration determines whether the drum turns, how efficiently clothes dry, and the overall safety of the operation. A properly routed and tensioned belt transfers power from the motor to the drum, while a worn or misrouted belt can slip, cause noise, or prevent the drum from turning. According to Easy DryVent, the belt is a critical link in the dryer's drive system, and understanding its path helps you diagnose issues before they become major problems. In most models, the belt runs around an electric motor pulley, then over one or more idler pulleys before gripping the drum. Each model can have slight routing differences, so consult your owner’s manual for the exact belt path. The goal is a smooth, taut loop that keeps the drum centered and aligned during rotation. When this configuration is off, you’ll notice slower drying, unusual sounds, or a drum that stops mid-cycle.
Safety First: Preparing for Belt Work
Before touching any energized appliance, unplug the dryer and disconnect the vent if necessary to prevent dust and lint inhalation. Wear snug, non-slip gloves and keep a clear workspace. Use a flashlight to inspect the interior without forcing panels. Do not attempt belt work if the drum is hot. If your dryer uses a gas supply or has exposed wiring, consult a professional rather than attempting a DIY repair. The Easy DryVent team emphasizes a patient, deliberate approach: confirm power is off, remove the front panel or access door only if you have the exact screws, and work on a dry, lint-free surface. Keep track of screws and pieces in a labeled container to avoid losing any parts.
Belt Types and Their Impact on Configuration
Dryers use different belt constructions, but two core ideas apply: belt width and belt length determine fit, while the belt’s cross-section influences grip and wear. A worn belt can slip on the drum or slip off pulleys, altering rotation speed and causing motor strain. Some models use a single continuous belt, while others rely on multiple segments and tensioners. Regardless of type, the goal of proper configuration is a consistent loop with correct tension that keeps the drum centered. When you replace or re-route, ensure the belt sits cleanly in each groove and does not twist. The Easy DryVent guidance highlights that mismatched belts—whether too long, too short, or of the wrong cross-section—can shorten belt life and void warranties. If you’re unsure about belt compatibility, check the model number plate on the dryer or consult the manufacturer’s site for the recommended belt type.
Signs Your Belt Is Misconfigured or Worn
Listen for squealing, chirping, or a loud whine when the motor runs. Feel for a drum that is sluggish or has intermittent stopping. Visually inspect for cracks, fraying, or glazing along the belt’s surface. If the belt appears stretched or if you can see shiny glazing near pulleys, it’s time to replace. A misaligned belt may ride up on edges or rub against components, producing smoke or a burnt odor in rare cases. Keep in mind that lint buildup in vents can accentuate belt wear by forcing the dryer to work harder.
Tools and Materials You’ll Need (and Why)
Preparing a safe, organized workspace makes the job faster and safer. Essential tools include a screwdriver set appropriate for your model, pliers for belt removal, and a new belt matched to your dryer model. A flashlight helps you see inside the drum, while gloves protect your hands. A towel or soft mat protects the drum surface and keeps parts from rolling away. Optional items like a small mirror can help you trace belt routing, and a belt routing diagram can be printed from the manufacturer site. The belt-specific notes matter because incorrect tools or an incompatible belt can cause more damage than the original problem.
Inspecting the Pulley System Without Full Disassembly
Start with power off and the drum still. Remove the front panel according to your model’s instructions, exposing the belt and pulleys. Gently rotate pulleys to see if the belt stays aligned in grooves. Look for fraying edges, cracks, or glazing. If the belt sits correctly but shows wear, plan for replacement soon. Use a marker or tape to annotate belt routing if you don’t have a diagram. Documenting the path helps you replicate it when you put the belt back. Easy DryVent notes that visual checks are essential even when the dryer appears to run normally, because some failures only become obvious under load.
Reconfiguring the Belt: When You Can Do It Without Replacing
If the belt is present but misrouted, you can often correct routing without removing the belt entirely. Start by unplugging the unit and removing the front panel to access the belt path. Remove any obstructing parts only if you have the proper screws and a spare container for small pieces. Re-seat the belt along the correct grooves, ensuring it sits flat without twists. Before reassembly, rotate the drum by hand to confirm the belt holds tension and remains in its pulleys. Finally, reattach the panel and prepare for a test run.
When Replacement Is Necessary: Installing a New Belt
A worn, cracked, or stretched belt should be replaced rather than re-tensioned. Start by removing the old belt completely, then route the new belt around the drum first, followed by the motor pulley and any tensioners. Make sure the belt sits in all grooves and that there are no twists. Reassemble the dryer’s front panel and run a quick test to verify the drum rotates smoothly without slipping. If your model uses a belt tensioner, adjust until the belt has about a thumb-width of deflection when pressed in the middle.
Testing, Verification, and Safety Checks
With the dryer reassembled, plug the unit in and run a dry cycle with no clothes to observe belt behavior. Listen for unusual noises and watch the drum for even rotation. If you see belt slipping, misalignment, or pulleys that heat up abnormally, power down and re-check belt routing and tension. Always verify lint screen and vent clearance after belt work, since restricted airflow increases belt load and can cause premature wear. The goal is a quiet, steady drum rotation on every cycle.
Maintenance Practices to Extend Belt Life
Regular lint removal, vent cleaning, and periodic belt inspections help extend belt life and energy efficiency. Clean the lint screen after each load, inspect vent ducts periodically, and look for signs of belt wear during routine maintenance. Keep the drum interior clean and dry to prevent belt glazing. The Easy DryVent approach emphasizes proactive checks and routine maintenance over reactive repairs, helping homeowners avoid costly belt failures.
Easy DryVent’s Guidance and Common Q&A
Across many dryer models, a misconfigured belt is a frequent culprit behind poor drying performance. Following a clean routing, correct tension, and routine maintenance aligns with Easy DryVent’s guidance for safe, efficient drying. If you’re unsure, consult your dryer’s manual or a professional. The aim is consistent drum rotation, minimal noise, and safe operation during every load.
Authority Resources and Quick Reference
To deepen your understanding, consult official safety and energy guidance from trusted sources. See the following links for broader dryer safety, performance, and maintenance context. These sources complement practical DIY steps and reinforce best practices for dryer belt configuration and overall appliance care.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Phillips #2 is most common; have multiple sizes if possible)
- Pliers(Needle-nose preferred for tight spaces)
- New dryer belt (matched to model)(Check model number plate and belt type)
- Flashlight(Bright, focused beam for interior visibility)
- Gloves (nonslip)(Protect hands during cool-down and handling)
- Towel or soft mat(Protect drum surface and catch small parts)
- Magnet or tape (routing aid)(Helps trace belt path if diagrams are unavailable)
- Owner’s manual or model-specific diagram(Provide exact belt path and tension guidance)
Steps
Estimated time: 60-90 minutes
- 1
Unplug and access
Unplug the dryer and open the front panel to access the belt area. Confirm there is no power and that the drum is stationary before touching any components. This prevents accidental starts and reduces shock risk.
Tip: Take a quick photo of the belt path before touching anything to aid reassembly. - 2
Remove panels and locate belt
Remove any screws securing the access panel to reveal the belt and pulleys. Identify the motor pulley and the idler pulley(s), noting how the belt sits in each groove.
Tip: Label or color-code pulleys if you’re working on a complex routing to avoid confusion. - 3
Inspect belt condition
Carefully examine the belt for cracks, fraying, glazing, or missing teeth. A worn belt is the primary reason for mis-rotation and should be replaced rather than reused.
Tip: If replacing, set the old belt aside as a reference for length and routing. - 4
Trace or re-route belt
Trace the belt path with care, or install the new belt around the drum first if your model’s path requires it. Ensure the belt lies flat in all grooves and there are no twists.
Tip: If unsure, use a belt routing diagram from the manual or manufacturer site. - 5
Install tension and secure parts
Position any tensioners or idlers and check belt tension. A properly tensioned belt should have light, even deflection when pressed with a finger.
Tip: Do not over-tighten; excessive tension can wear bearings and shorten belt life. - 6
Reassemble and test without load
Reattach panels securely and plug the dryer back in. Run a short, empty cycle to observe drum rotation and belt operation.
Tip: Watch the drum closely for smooth motion and listen for any unusual noises. - 7
Verify final operation
If the drum spins evenly and quietly, proceed to a full load test. If issues persist, re-check routing or consult a professional.
Tip: Document any residual noises or symptoms to assist future maintenance. - 8
Document and store parts
Keep track of screws, belts, and small parts in labeled containers. Record the model, belt type, and date of service for future reference.
Tip: Store the belt unused in its original packaging to prevent damage.
Common Questions
How do I know if my dryer belt needs replacement?
If you hear squealing or the drum doesn’t rotate properly, inspect for cracks or fraying. Visual wear and glazing indicate replacement is needed. If in doubt, replace with the correct belt type for your model.
If you hear noise or the drum won’t rotate, inspect the belt for wear. Replace if cracked or frayed.
Can I operate the dryer if the drum doesn’t spin?
No. Running a dryer with a non-rotating drum can cause motor or pulley damage and pose a safety risk. Stop immediately and assess belt routing or wear.
No. A non-spinning drum can damage the motor or pulleys—stop and inspect the belt.
Is belt tension something I should measure precisely?
Precise tension helps, but many models don’t require exact numbers. Look for a slight deflection when pressed in the middle and ensure the belt sits in all grooves without twisting.
Aim for a gentle bend in the belt; it shouldn’t feel loose or overly tight.
Can I replace the belt myself, or should I hire a pro?
Many belt replacements are doable for handy homeowners with the right tools and manual. If you encounter wiring, gas components, or unusual cage layouts, consider professional service.
DIY is possible with the right tools; call a pro for complex setups or safety concerns.
What signs indicate misalignment after reassembly?
If the belt edge rubs against a component, makes grinding noises, or the drum rotates unevenly, re-check routing. A correctly installed belt should run smoothly with no audible friction.
Rubbing noises or uneven drum rotation means the belt isn’t aligned properly.
Why is lint buildup related to belt health?
Lint adds resistance and can increase dryer temperature, placing extra load on the belt. Regular lint removal helps maintain belt life and dryer efficiency.
Lint buildup can stress the belt; clean vents and lint screens regularly.
Watch Video

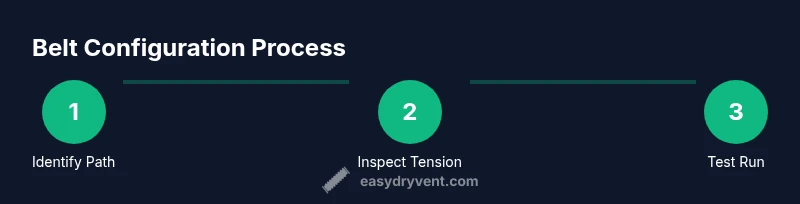

Key Points
- Identify the belt path before touching components.
- Replace worn belts rather than attempting risky re-tensioning.
- Inspect pulleys and tensioners for smooth operation.
- Test with no-load before regular use.
- Document the routing for easier future maintenance.
