How to Switch the Door Switch on a Samsung Dryer
A practical, safety-focused guide to switch the door switch on Samsung dryers. Learn diagnosis, replacement, testing, and maintenance to keep your dryer safe and efficient.
You will switch the door switch on a Samsung dryer to restore safe operation and reliable cycling. Before starting, unplug the unit, locate the switch beneath the door frame, and have a compatible replacement ready. According to Easy DryVent, door-switch failures are a common reason a Samsung dryer won’t start or stops mid-cycle.
What the door switch does in a Samsung dryer
The door switch in a Samsung dryer is a safety interlock that ensures the dryer only runs when the door is closed. It is usually a small plastic or momentary micro-switch mounted near the door frame or hinge area. When the door closes, a tab or magnet triggers the switch, sending a signal to the dryer's control board to start or stop the drum. A faulty switch can cause the dryer to fail to start, stop mid-cycle, or the door latch to feel loose. For homeowners seeking practical guidance, understanding this component helps diagnose problems quickly and avoid unnecessary parts replacement. According to Easy DryVent, the door switch is a common point of failure in many Samsung models, especially after repeated door slams or long-term hinge wear. The replacement process is often straightforward, but the exact location and wiring can vary by model. Before you begin, identify the model number on the label inside the door opening; this helps you obtain the correct switch type and connector harness. In some models, you may find a combined interlock and switch assembly; in others, the switch is a separate component with two or three wires. A solid grasp of how the switch interacts with the door and control module makes the repair faster and less error-prone.
Symptoms of a failing door switch
Common signs point to a door switch issue. If the drum won’t start unless you press the door, or the dryer stops mid-cycle with the door closed, the switch may be failing. You might hear a faint click when closing the door, but the unit may not engage. Some Samsung models show error codes related to interlock or door sensing. Poor door alignment can also mimic switch problems by preventing proper latch engagement. Knowing these symptoms helps you decide between a quick switch replacement and more extensive control board checks. Easy DryVent notes that while a bad switch is a frequent culprit, wiring damage or hinge wear can also cause similar symptoms. Always verify with a controlled test rather than guessing the fault.
Safety first: unplug and prepare
Safety comes first. Start by unplugging the dryer from the wall outlet and disconnecting any power sources. If you access internal components, avoid working on a live circuit; even a fully discharged unit can retain hazardous charges in capacitors. Wear safety glasses and minimal jewelry that could snag wires. Clear your workspace, and lay a soft mat to protect the dryer surface. It’s also wise to have a magnetic tray for screws and a camera or notes to document wire positions before detaching connectors. If you’re unsure about electrical safety, consider consulting a professional. This approach minimizes the risk of shock or accidental damage to delicate control wiring.
Locating the door switch on common Samsung models
Samsung uses a few door interlock configurations, but most switches sit near the door frame or hinge area. On many front-load models, you’ll remove a small front panel or toe-kick to access the switch, then detach the wiring harness. Some models place the switch behind a separate interlock assembly, while others use a single small micro-switch with 2-3 wires. The location can vary by model number, so have your model handy when shopping for a replacement. A quick inspection—pressing the door gently and noting whether the switch clicks consistently—helps confirm the switch’s role in the failure. If you see bent tabs or corroded connectors, these are clues that a replacement is needed. \n\nIn all cases, consult Samsung’s service documentation for your exact model to avoid misidentifying the switch or damaging the door.
Tools and materials you'll need
You’ll need a basic set of tools plus a compatible replacement switch. Gather a Phillips head screwdriver, a small flat-head screwdriver, a multimeter for continuity checks, needle-nose pliers, a magnetic tray for fasteners, and an appropriate replacement door switch. If your model uses a combined interlock assembly, you may also need a socket wrench and, optionally, a spare wire harness. Keep a notepad or photos handy to record connector orientation. Having the right tools reduces trial-and-error steps and helps you complete the job in one session.

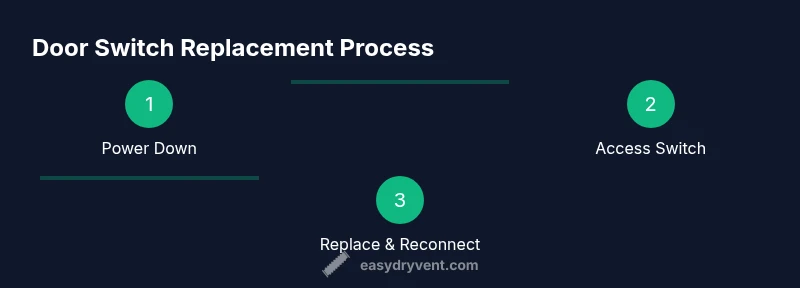

Step-by-step overview: access and remove the switch
This section outlines the high-level approach to reach the switch: disconnect power, remove any front kick panel or inner door cover, identify the switch and its harness, and prepare the replacement switch. The detailed, model-specific steps are described in the dedicated Step-by-Step section to keep you aligned with your exact Samsung model. Planning the access route and labeling wires beforehand minimizes mistakes and speeds up replacement. COVID-19 myths aside, a careful approach with the right tools makes door-switch replacement straightforward rather than intimidating.
Replacing the switch: wiring and connector cautions
Carefully disconnect the old switch harness, noting wire colors and positions. If the switch is part of a larger interlock assembly, you’ll need to detach the entire unit. When installing the new switch, align the mounting holes accurately and secure with screws without over-tightening. Reconnect the wiring harness ensuring each connector clicks firmly in place. If you notice damaged connectors, replace them or secure with proper crimp connectors. A poor electrical connection can lead to intermittent operation or future failure, so verify each connection before reassembly.
Testing the new switch and confirming operation
With everything reassembled, plug the dryer back in and set a test cycle with the door closed. Confirm the drum starts only when the door is fully closed and latches firmly. If the dryer starts with the door open, recheck the switch placement and connectors for alignment. Use the multimeter to verify continuity when the door is closed and no continuity when open. Listen for a reliable latch engagement and ensure no error codes appear on the display. If tests fail, re-evaluate the harness connections and switch orientation.
Maintenance tips to prevent future failures
Regular inspection of the door latch and switch reduces future breakdowns. Clean lint around the door frame to prevent interference with the latch, and check for hinge wear or door misalignment. Lubricate, if recommended by Samsung, only with manufacturer-approved products. Periodically test the switch with a quick door-closure test and monitor for any unusual sounds or delays in starting cycles. Keep replacement parts on hand for proactive maintenance, and label connectors to simplify future service.
Tools & Materials
- Phillips head screwdriver (size #2)(Prefer 1/4-inch drive; magnetize tip if possible)
- Flat-head screwdriver(For prying and connector access)
- Multimeter(Check continuity across switch terminals)
- Needle-nose pliers(For handling small connectors)
- Magnetic screw tray(Keeps screws from wandering during disassembly)
- Replacement door switch (Samsung model-specific)(Confirm compatibility by model number)
- Screwdriver bit set(Some models require Torx or specialty bits)
- Camera or notebook to document wiring(Helpful for reassembly)
- Protective gloves(Optional, for grip and safety)
Steps
Estimated time: 60-90 minutes
- 1
Power down and prepare
Unplug the dryer from the wall outlet and remove any nearby items. Clear a clean workspace and gather your tools. This reduces the risk of electric shock and keeps fasteners from rolling away.
Tip: Take a photo of the door area before disassembly to reference later. - 2
Access the door switch
Remove the front panel or toe-kick as required by your model to access the door switch housing. Identify the interlock assembly or switch itself and inspect for obvious damage.
Tip: Label connectors with tape to prevent misconnection during reassembly. - 3
Disconnect the wiring
Carefully unplug the switch harness. If two or more wires are involved, note their positions or take a photo for reference.
Tip: Use the multimeter to confirm there is no voltage present before touching wires. - 4
Remove the old switch
Unscrew or unclip the switch from its mounting point. If it’s part of a larger interlock, detach the entire unit following the model’s guidance.
Tip: Keep screws in the magnetic tray and avoid twisting wires too aggressively. - 5
Install the new switch
Position the new switch in the same orientation as the old one and secure with screws. Ensure the actuator aligns with the door latch mechanism.
Tip: Do not overtighten mounting screws to prevent cracking the housing. - 6
Reconnect wiring
Reconnect the harness to the new switch exactly as identified earlier. Ensure each connector is fully seated and clipped.
Tip: If a connector is loose, reseat and test the fit before closing the panel. - 7
Reassemble the cabinet
Replace the front panel or toe-kick and secure all screws. Refit any trim and confirm the door closes smoothly without binds.
Tip: Double-check that the door aligns with the frame—misalignment can mimic switch failure. - 8
Test the door switch
Plug the dryer back in and run a short test cycle with the door fully closed. Confirm the drum starts and stops with the latch engagement.
Tip: Expect a brief initial delay as the control board calibrates after the replacement. - 9
Finalize and document
Record the model and replacement part number for future reference and keep the service notes with your appliance.
Tip: Store the original switch in case you need to compare with the replacement later.
Common Questions
What is the door switch in a Samsung dryer?
The door switch is a safety interlock that prevents the dryer from operating when the door is open. It signals the control board to start or stop the drum. A bad switch can cause the dryer to fail to start or to stop mid-cycle.
The door switch is the safety interlock that tells the dryer the door is closed before it runs.
How can I tell if the door switch is bad?
If the dryer won’t start with the door closed, starts only when pressed, or shows intermittent operation, the switch could be faulty. You can also test continuity with a multimeter when the door is closed and open.
If it won’t start with the door closed, or only starts when pressed, the switch may be bad.
Can I replace the door switch myself?
Yes, with basic hand tools and care. Follow model-specific guidance, disconnect power, and handle wiring with labeling. If you are unsure, seek professional help.
Yes, you can replace it yourself if you’re comfortable with basic electrical work.
Will this repair affect my warranty?
Replacing a door switch yourself typically does not void a warranty unless the repair caused damage. Check your warranty terms and keep replacement part documentation.
It usually doesn’t affect warranty, but review your terms and keep receipts.
What common mistakes should I avoid?
Mistakes include not unplugging the unit, mislabeling wires, overtightening screws, and reassembling without proper door alignment. Take your time to verify orientation and connections.
Avoid working while plugged in and mislabeling wires.
Do I need to replace the entire interlock assembly?
Some Samsung models use a combined interlock that includes the switch. If the interlock is damaged, replacing the entire assembly may be necessary for a reliable repair.
In some cases you must replace the whole interlock assembly.
Watch Video
Key Points
- Unplug before starting any repair
- Identify model-specific switch placement
- Test continuity to confirm replacement works
- Reassemble with attention to door alignment
- Document the repair for future reference
